Products

SIMES

INGROUND UPLIGHT
OUTDOOR LIGHTING

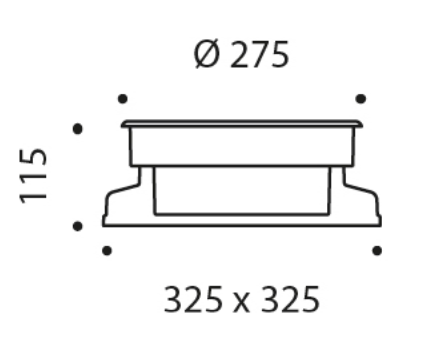

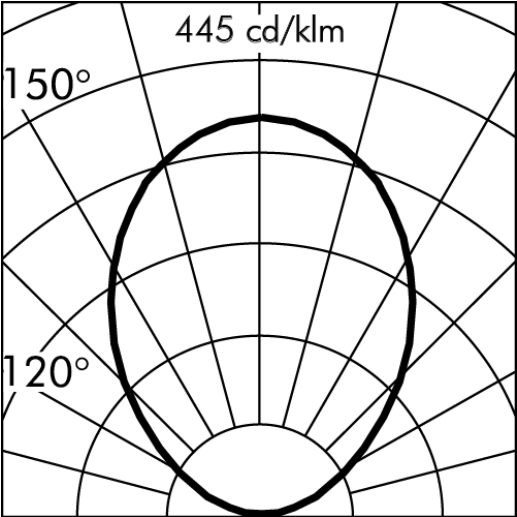

S.5128W.19
"Copper Free" Aluminium die cast housing in EN AB-44100 with high resistance against corrosion. Stone wash surface treatment prior to painting process. A4 grade Stainless Steel screws with 2,5-3% molybdenum content which increases the resistance against corrosion. Pre treated Silicone Gaskets. Painting Process: 3 Step Process: 1) Surface treatment with BONDERITE. A heavy metal free chemical surface treatment containing ceramic nano particles giving a cohesive, inorganic and highly dense protective coating. 2) PRE POLYMERIZATION a process of introducing an epoxy primer with excellent characteristics to the paint which also offers very high resistance to oxidation due to its Zinc content. 3) POLYMERIZATION a process with the application of polyester powder with high resistance against UV rays and harsh weather conditions. Resistance test protection for Marine applications for 1200h. Mechanical resistance IK 09 Maximum load capacity 1000 Kg. This luminaire contains built-in LED modules. In case of damage or malfunction please contact the manufacturer to receive additional instructions on how to replace and relative spare parts to order. The LED modules cannot be handled in the luminaire by the end user. This product contains a light source of energy efficiency class: E. LED modules are engineered accordingly to the existing regulations of Lumen Maintenance (LM80) and Technical Memorandum (TM21), where uniformity and quality of the light is 70,000 hours referred to L80 B10 Ta 25 ° C (50,000 hours referable to L80 B10 Ta 40°C). Lifespan of the luminaire min. 50,000 hours at 40°C. Performance Ambient temperature Tq 25°C. Operating ambient temperature range is from -20°C to +50°C. Storage temperature range from -20°C to +60°C.

Specification

Power
11.1W
Color Temperature
3000K
Light Source Type
LED
Lumen Output
377LM
Finishing
STAINLESS STEEL
IP Rating
IP67
Color Rendering
CRI 90
Driver
ON/OFF DRIVER

See more

SPARK
MAGNETIC TRACKLIGHT
INDOOR LIGHTING

Magnetic track system come with RECESSED mount or SURFACE mount version. Module available LED Diffused linear, LED Spot linear, LED Spot light etc. Input Voltage 48VDC.

DIMENSION : 680*22*25mm

LINEALIGHT
PENDANT
INDOOR LIGHTING
Single emission pendant luminaires for indoor application. The warm white LED light source with a spot light distribution is composed of 1 arrayled LEDs. The device body is made of iron and features a embossed black ral 9005 finish, processed by means of powder coating The device body is made of aluminium 6060 and features a 5g 9005 black finish, processed by means of powder coating; the diffuser is made of extra clear glass. The ingress protection degree is IP40; the total weight is of 1.2 kg. The power supply cable is included and features a 1,8 m length. The device features protection class II and can be ceiling-mounted. Compliant with the EN 60598-1 standard and its specific provisions.
FLOS
RECESSED DOWNLIGHT
INDOOR LIGHTING
Embedded luminaire for LED light source. Remote 220/240V power supply included.Pre-installation frame must be ordered separately. The ingress protection drgree is IP20.
LINEALIGHT
WALLWASHER
OUTDOOR LIGHTING
Single emission lines for outdoor application. The warm white LED light source with a medium wide flood light distribution is composed of 18 powerled LEDs. The device body is made of aluminium 6060 and features a anodised black finish, processed by means of 15 µm anodizing; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP67; the total weight is of 4.8 kg. The power supply cable is included and features a 0.2 m length. The device features protection class I and can be floor-mounted with an outer casing, code 98673 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.
