WIBRE

TUBE a family of cylindrical sharped wall light, ceiling light and area light. The body components are made from extruded and LM6 aluminium which make them highly corrosion resistant to any extreme environment. TUBE is protected from the ingress of dust and water and are used in both outdoor and indoor environments. Fitted with COB LED in three color temperature from 2700K, 3000K or 4000K with high CRI. TUBE can slove many lighting tasks in modern architectural surrounds and are generally used in illuminating columns and facedes. The pole lights give a great level of downward light with symmetric or asymmetric light distributions.

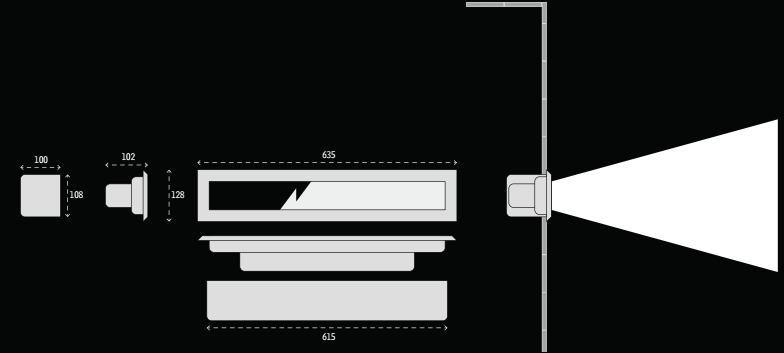

Luminaire made of aluminium alloy, aluminium and stainless steel BEGA Unidure® coating technology. The color come with graphite or silver Matt safety glass. Reflector made of pure anodised aluminium Silicone gasket. Protection class IP 65, IK 10. DIMENSION: Width 300mm, Height 120mm and Depth 75mm.

Luminaire made of copper, brass and stainless steel Crystal glass coated 2 mounting holes ø 5.5 mm. Distance apart 108 x 108 mm, 1 cable entry for mains supply cable up to ø 10,5 mm max. 3 × 1,5@ Connecting terminal 2.5@ Earth conductor connection. LED power supply unit 220-240 V x 0/50-60 Hz. DC 176-280 V. Safety class I. Protection class IP 64 Dust-tight and protection against splash water. Impact strength IK07 Protection against mechanical, impacts < 2 joule, r – Safety mark c – Conformity mark.
