XAL

RECESSED DOWNLIGHT
INDOOR LIGHTING
090-7L251G0B21 090-7L2020B

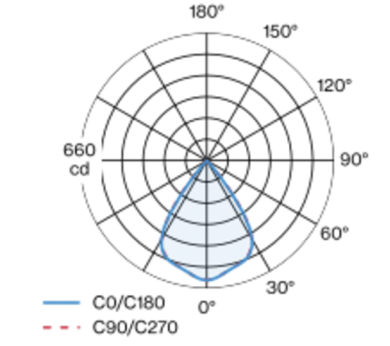

Rectangular recessed multi-downlight made of die-cast aluminium; installation without tools in mounting set due to patented ball catch system; rectangular installation housing; with trim jet black; suitable for ceiling thickness of 2-25 mm; equipped with two wide flood square light elements; symmetrical light distribution with precise radiation characteristic, beam angle 71°; high quality reflector with micro-faceted, aluminum-vaporised surface; black reflector; passive cooling of the LEDs through improved heat sink geometry; light colour 3000 K; binning initial MacAdam ≤ 3 SDCM; CRI ≥ 90; min. 90% of luminous flux after 50000 operating hours; energy-efficient high power LEDs with very good colour rendering; degree of protection IP20; PC2; incl. converter, non dimmable; through wiring connection box, 3-pole or 5-pole, available as an accessory; accessories are listed separately; light source not replaceable; control gear replaceable by an authorized professional; clank-free

Specification

Power
7.9W
Color Temperature
3000K
Light Source Type
LED
Lumen Output
723LM
Finishing
BLACK
IP Rating
IP20
Color Rendering
CRI >90
Driver
ON/OFF DRIVER

See more

UNILAMP
FLOODLIGHT
OUTDOOR LIGHTING
ATHLON family is functional mini spotlight/ floodlight. The slim and clean design of Athlon allows a hidden installation. Athlon is designed for a streamlined time effective installation. Alanod Miro reflectors used in this luminaire are designed by Photopia high-end lighting engineering software. Tigh beam control utilizes selected lenses from world-renowned manufacturers. ATHLON is available with symmetric, asymmetric and bisymmetric light distributions and the broad range of accessories such as a ground, spike, tree strap, color filters, honey comb louver and glare shield hook makes it a dynamic floodlight choice. The graduated scale provides accuracy of the light distribution on the illuminated surface. ATHLON is suitable to light up small to medium sized objects or areas such as signage boards, ceiling, building facades, etc.
LINEALIGHT
LED NEON TUBE
OUTDOOR LIGHTING

Single emission submerged or led strip for outdoor application. The natural white LED light source with a diffused light distribution is composed of 1120 topled LEDs. The luminaire body is made of technopolymer and features a white finish; the diffuser is made of pu. The ingress protection degree is IP68. IK07.

SPARK
TRACKLIGHT
INDOOR LIGHTING
Track Adjustable Spotlight luminaire body made of aluminium housing with white powder coated finish. Various of different votages from 30 to 55w.
SPARK
TRACKLIGHT
INDOOR LIGHTING

LED Central linear light with twin wings tilting linear light system can be flexibly combined with track spotlights on the same track rail for general lighting & accent lighting. Ultra slim delicate design and flexible rotation for wall washing. It come in 3-wire, 4-wire and 6-wire surface / suspension track. Various of beam angle available.
