Product Detail
Home Products Detail

Products

XAL

RECESSED DOWNLIGHT
INDOOR LIGHTING
090-7L251F0B21 090-7L20100

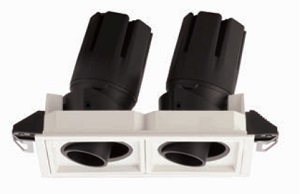

Rectangular recessed multi-downlight made of die-cast aluminium; installation without tools in mounting set due to patented ball catch system; rectangular installation housing; for trimless installation in plasterboard ceilings; suitable for ceiling thickness of 12.5/15/20/25 mm; equipped with two flood square light elements; symmetrical light distribution with precise radiation characteristic, beam angle 56°; high quality reflector with micro-faceted, aluminum-vaporised surface; black reflector; UGR ≤ 19; VDU compatible workplace luminaire according to DIN EN 12464-1; luminance above 65° ≤ 3000 cd/m²; passive cooling of the LEDs through improved heat sink geometry; light colour 3000 K; binning initial MacAdam ≤ 3 SDCM; CRI ≥ 90; min. 90% of luminous flux after 50000 operating hours; energy-efficient high power LEDs with very good colour rendering; degree of protection IP20; PC2; incl. converter, non dimmable; through wiring connection box, 3-pole or 5-pole, available as an accessory; accessories are listed separately; light source not replaceable; control gear replaceable by an authorized professional; clank-free

Specification

Power
7.9W
Color Temperature
3000K
Light Source Type
LED
Lumen Output
704LM
Finishing
BLACK
IP Rating
IP20
Color Rendering
CRI >90
Driver
ON/OFF DRIVER

See more

CDN LIGHTING
RECESSED DOWNLIGHT
INDOOR LIGHTING


BEGA
WALL LIGHT
OUTDOOR LIGHTING

Luminaire made of aluminium alloy, aluminium and stainless steel Antique glass. Mounting plate with 3 fixing holes ø 9.2 mm. Angle 120° · Pitch circle ø 138 mm. 2 cable entries for through-wiring of mains supply cable ø 7-10,5 mm, max. 3 G 1.5@ 3-pole plug connection with connecting terminal and earth conductor terminal 2.5@ LED power supply unit, 220-240 V x 0/50-60 Hz, DC 198-280 V, Safety class I, Protection class IP 44, Protected against granular foreign bodies, > 1 mm and splash water, c – Conformity mark.

SPARK
LINEAR DOWNLIGHT
INDOOR LIGHTING
Recessed linear downlight, luminaire body made of aluminium housing with white powder coated trim finish. Reflector available Silver, Black Chrome and White finish. Black finish and honeycomb accessory available upon request.. Different type of bean angles.
WE-EF
SURFACE MOUNTED LIGHT
OUTDOOR LIGHTING
Marine-grade, die-cast aluminium alloy. 5CE superior corrosion protection including PCS hardware. Safety glass lens. Silicone CCG® Controlled Compression Gasket. Luminaire is factory-sealed and does not need to be opened during installation. Integral EC electronic converter. Advanced thermal management protects LEDs while optimising lumens output. CAD-optimised optics for superior illumination and glare control. OLC® One LED Concept. Optional 2200 K version up to max. 1050mA available. To be specified at time of ordering. Luminaire can be mounted for up or down lighting.
