XAL

LINEAR DOWNLIGHT
INDOOR LIGHTING
090-7L351G0B21 090-7L3020W

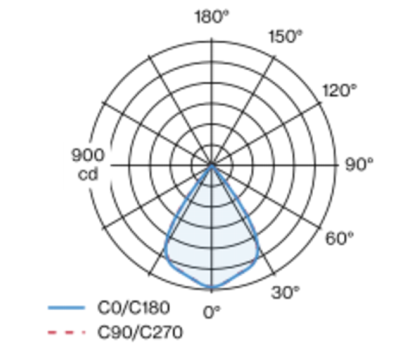

Rectangular recessed multi-downlight made of die-cast aluminium; installation without tools in mounting set due to patented ball catch system; rectangular installation housing; with trim traffic white; suitable for ceiling thickness of 2-25 mm; equipped with three wide flood square light elements; symmetrical light distribution with precise radiation characteristic, beam angle 71°; high quality reflector with micro-faceted, aluminum-vaporised surface; black reflector; passive cooling of the LEDs through improved heat sink geometry; light colour 3000 K; binning initial MacAdam ≤ 3 SDCM; CRI ≥ 90; min. 90% of luminous flux after 50000 operating hours; energyefficient high power LEDs with very good colour rendering; degree of protection IP20; PC2; incl. converter, non dimmable; through wiring connection box, 3-pole or 5-pole, available as an accessory; accessories are listed separately; light source not replaceable; control gear replaceable by an authorized professional; clank-free

Specification

Power
11.2W
Color Temperature
3000K
Light Source Type
LED
Lumen Output
1030LM
Finishing
WHITE
IP Rating
IP20
Color Rendering
CRI >90
Driver
ON/OFF DRIVER

See more

LINEALIGHT
FLOODLIGHT
OUTDOOR LIGHTING

Single emission projectors for outdoor application. The super warm LED light source with a spot light distribution is composed of 1 powerled LEDs with CCT of 2700 K and a CRI 80; the source luminous flux is 659 lm, with a 109.8 lm/W nominal luminous efficacy. The device body is made of die-cast aluminium en ab - 46100 and features a dark brown finish, processed by means of open pore anodizing + powder coating; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP66; the total weight is of 0.2 kg. The power supply driver is not provided and is to be ordered separately. The total absorbed power is 6 W. The power supply cable is included and features a 1 m length. The device features protection class III and can be wall lights, ceiling or floor-mounted. Compliant with the EN 60598-1 standard and its specific provisions.

LUCE & LIGHT
UNDERWATER LIGHT
OUTDOOR LIGHTING


SPARK
RECESSED DOWNLIGHT
INDOOR LIGHTING


CATELLANI & SMITH
BOLLARD
OUTDOOR LIGHTING

standing lamp designed with a transparent or irregular glass sphere, mounted on a black varnished metal stem with brass details. The light source is a LED bulb G4, 12Vdc, 0.8W, providing 69 lumens at 2700K with CRI 80. The fixture has a protection grade of IP65 for the lamp holder and IP68 for wires and connectors, making it suitable for outdoor use but not for full immersion.
