SPARK

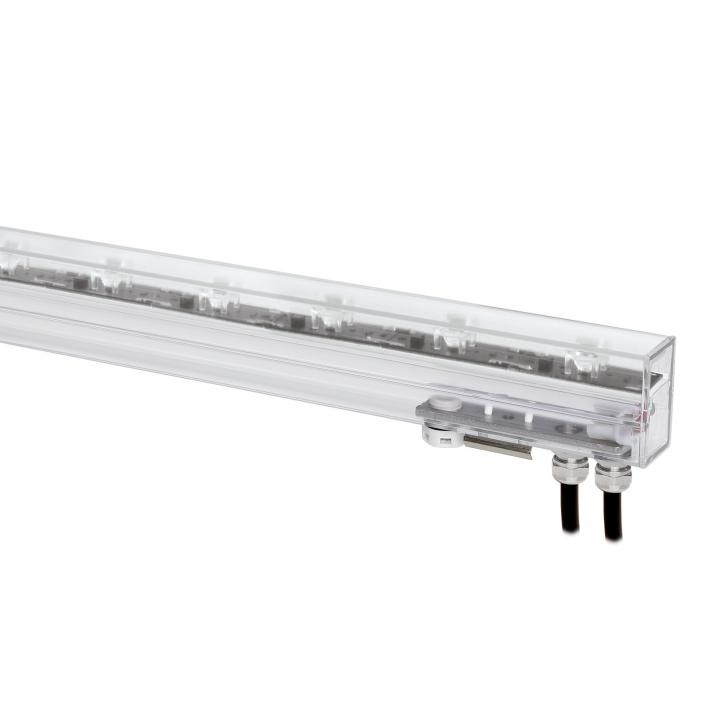

Pixelized light line produced to the desired length with IP67 connectors on both ends for fast indirect facade lighting installations. Suitable with 10 different optics. Delivered ready to use with an IP67 connector on both ends and can be easily installed via clips or mounting profiles. The aluminium profile is used for thermal management, so that even powerful LED strips with up to 25W/M. The polyurethane encapsulation ensures an IP67 rating and high resistance against salt water and UV radiation by a clear polyurethane encapsulation.

 Integral EC electronic converter (mains voltage). Integral ED electronic driver (24VDC low voltage).

test

TA8 + LED Module

M4-9302013A-TA8-BBB

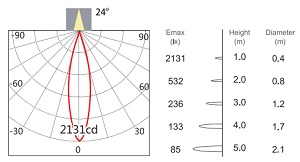

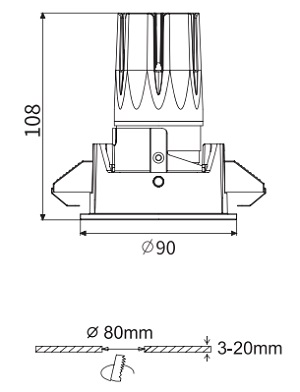

Round spotlight for recessed installation made of die-cast aluminium with black powder-coating finish (RAL 9005) and black reflector; 0-10V Dim Driver; LED 13W; measurement Ø85mm; ceiling cutout of Ø75mm with a narrow mounting trim; luminaire's weight is approximately 280g; rotation 355° and pivot max. 18°; CCT 3000K with an LED Output of 1400lm; high color rendering at an index of CRI90; after a lifetime of 50000h min. 80% of the luminous flux with energy efficient CITIZEN LED Chips; 5 years warranty; beam characteristic with 20° beam angle; lighting perfectly suitable for reading, writing as well as computer and control work according to DIN EN 12464-1 (UGR<19); degree of housing protection IP20 (LED Module IP54)
