XAL

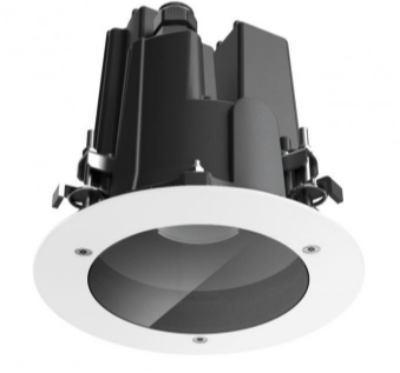

Recessed luminaire with LED light source. Power supply not included. Installation frame not necessary. The ingress protection degree is IP20.

Housing made of corrosion‑resistant die‑cast aluminum AlSi12, polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, tempered safety glass, anti‑reflective coating from 1 side, dark screenprint, silicon gasket, closure with 2 stainless steel screws, mounting bracket: 1 elongated hole Ø 7 mm, spacing 18 mm, 1 centre hole Ø 8.5 mm, tilt range: 180°, cable gland: M16, connecting terminal: 3 pole, precise PMMA optics, integral driver (AC/DC), CRI > 80, max 2 SDCM, service life L90/B10 > 50.000 h, Beam angle (fwhm): 4°, luminous flux: 503 lm, wattage: 10 W, delivered lumens 50 lm/W, protection type IP67, protection class I, impact resistance IK08, windage area 0,012 m², dimensions: Ø 100 mm, width 80 mm, weight 1.8 kg. The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE and ENEC marks. Customized solutions and modifications are possible: Special ral, db or ncs colours as polyester powder coat, luminaires in 2700 K and other colour temperatures and versions for high ambient temperature.

Updated with low lumen high wattage LED series Increased 270% efficacy, Max. 160lm/W Customisable up to 1.5M Flexible strip with bending sideways suitable for curved application Cuttable every 7 LEDs (50mm)

Die-cast aluminium surface round ceiling light with white powder coated. Time saving installation through snap-in mounting system. LED board highly reflective lacquered for higher efficiency. Satin PMMA cover; luminaire with 2 cable openings and plug-in terminal for through wiring. IP54 (wall mounted) and IP50 (ceiling mounted). IK07 DIMENSION : D595MM * H80MM
