XAL

LINEAR DOWNLIGHT

INDOOR LIGHTING

090-7L451D0B21 090-7L4020B

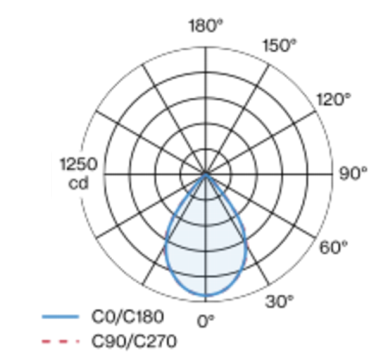

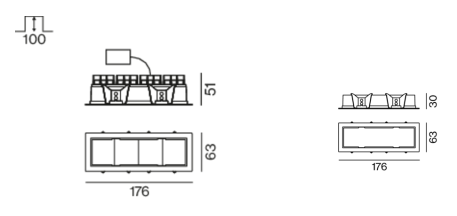

Rectangular recessed multi-downlight made of die-cast aluminium; installation without tools in mounting set due to patented ball catch system; rectangular installation housing; with trim jet black; suitable for ceiling thickness of 2-25 mm; equipped with four wide flood round light elements; symmetrical light distribution with precise radiation characteristic, beam angle 72°; high quality reflector with micro-faceted, aluminum-vaporised surface; black reflector; passive cooling of the LEDs through improved heat sink geometry; light colour 3000 K; binning initial MacAdam ≤ 3 SDCM; CRI ≥ 90; min. 90% of luminous flux after 50000 operating hours; energy-efficient high power LEDs with very good colour rendering; degree of protection IP20; PC2; incl. converter, non dimmable; through wiring connection box, 3-pole or 5-pole, available as an accessory; accessories are listed separately; light source not replaceable; control gear replaceable by an authorized professional; clank-free

Specification

Power

13.9W

Color Temperature

3000K

Light Source Type

LED

Lumen Output

1370LM

Finishing

BLACK

IP Rating

IP20

Color Rendering

CRI >90

Driver

ON/OFF DRIVER

LINEALIGHT

WALLWASHER

INDOOR LIGHTING

Single emission lines for indoor application. The warm white LED light source with a diffused light distribution is composed of 90 topled LEDs. The device body is made of PC and features a opal white finish; the diffuser is made of PC. The ingress protection degree is IP40; the total weight is of 0.025 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.2 m length. The device features protection class III and can be wall lights or ceilingmounted. Compliant with the EN 60598-1 standard and its specific provisions.

LIGHTFORMS

RECESSED DOWNLIGHT

OUTDOOR LIGHTING

This ceiling recessed, IP65 rated, downlight has a high lumen output capability and is available in various finishes and colour temperatures, this light fitting is perfect for retail, workplace and hospitality lighting schemes.

LIGHTFORMS

RECESSED LINEAR LIGHT

INDOOR LIGHTING

Lightplane 6 Recessed is a large recessed slot light available either with a small 12.5mm trim or in a trimless version. The luminaire can be installed both vertically and horizontally to form continuous or individual rows. Available with several LED lamping options including multiple outputs, CCTs, tunable white, and color-changing RGB+White.

LINEALIGHT

RECESSED DOWNLIGHT

INDOOR LIGHTING

Single emission downlights for indoor application. The warm white LED light source with a medium wide flood light distribution is composed of 1 arrayled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a white finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP44; the total weight is of 0.511 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.300 m length. The device features protection class III and can be ceiling-mounted, with a 95 mm diameter hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.
