XAL

LINEAR DOWNLIGHT
INDOOR LIGHTING
090-7L651D0B21 090-7L60100

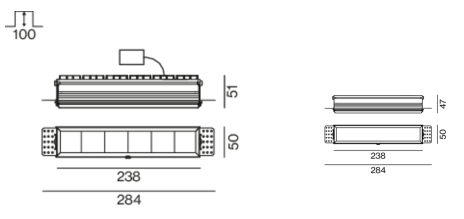

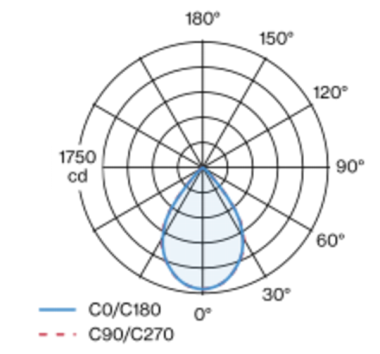

Rectangular recessed multi-downlight made of die-cast aluminium; installation without tools in mounting set due to patented ball catch system; rectangular installation housing; for trimless installation in plasterboard ceilings; suitable for ceiling thickness of 12.5/15/20/25 mm; equipped with six wide flood round light elements; symmetrical light distribution with precise radiation characteristic, beam angle 72°; high quality reflector with micro-faceted, aluminum-vaporised surface; black reflector; passive cooling of the LEDs through improved heat sink geometry; light colour 3000 K; binning initial MacAdam ≤ 3 SDCM; CRI ≥ 90; min. 90% of luminous flux after 50000 operating hours; energy-efficient high power LEDs with very good colour rendering; degree of protection IP20; PC2; incl. converter, non dimmable; through wiring connection box, 3-pole or 5-pole, available as an accessory; accessories are listed separately; light source not replaceable; control gear replaceable by an authorized professional; clank-free

Specification

Power
19.8W
Color Temperature
3000K
Light Source Type
LED
Lumen Output
1960LM
Finishing
BLACK
IP Rating
IP20
Color Rendering
CRI >90
Driver
ON/OFF DRIVER

See more

LINEALIGHT
RECESSED DOWNLIGHT
INDOOR LIGHTING
Single emission downlights for indoor application. The warm white LED light source with a medium wide flood light distribution is composed of 1 arrayled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a black finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP44; the total weight is of 1.05 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.30 m length. The device features protection class III and can be ceiling-mounted, with a 121 mm diameter hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.
NEKO
RECESSED DOWNLIGHT
INDOOR LIGHTING
Round recessed ceiling downlight made of die-cast aluminium with white powder-coating finish (RAL 9016) and white reflector; Phase Dim Driver; System Power 11W; measurement Ø82mm; ceiling cutout of Ø70mm with a narrow mounting trim; luminaire's height is 64mm; pivot max. 30°; CCT 3000K with a System Luminous Flux of 750lm; high color rendering at an index of CRI90; after a lifetime of 50000h L80B10 min. 80% of the luminous flux with energy efficient BRIDGELUX LED Chips; 5 years warranty; lighting perfectly suitable for reading, writing as well as computer and control work with UGR<19; degree of housing protection IP44 on the visible part of the product one installed; light source replaceable by a qualified electrician; driver replaceable by a qualified electrician
IGUZZINI
SURFACE LINEAR LIGHT
OUTDOOR LIGHTING

Direct light luminaire, designed to use monochrome LED lamps. Ceiling- and wall-mounted. Consists of a body and supports for installation (to be ordered separately). Extruded aluminium body, with zamak die-cast end caps complete with silicone gaskets. Coated with liquid acrylic paint with a high level of weather and UV ray resistance. The top of the optical assembly is closed by a 3 mm thick transparent glass screen, fixed with silicone. Complete with multi-LED power plate in Warm White with 24V dc electronic circuit (ballast to be ordered separately); 24V smart driver allowing constant light flow emission despite variations in the input voltage (from 30V dc to 16V dc). Fitted with satin-finish polycarbonate film and optics with plastic (methacrylate) lens for 30° FLOOD lighting. All external screws used are made of A2 stainless steel. The luminaire technical characteristics conform to EN 60598-1 standards and particular requirements.

IGUZZINI
FLOODLIGHT
OUTDOOR LIGHTING

Floodlight designed to useWarm White LED lamps and lenses for flood distribution. The luminaire consists of an optical assembly/component-holding box and hidden fixing bracket. The optical assembly and front frame are made of die-cast aluminium alloy coated with liquid acrylic paint (colour: RAL 9007 grey) or textured liquid paint (colour: RAL 9016 white) with a high level of resistance to atmospheric agents and UV rays. The ingress protection degree is IP66, IK07.
