SPARK

The fixture has a round symmetrical design with four rings reflecting the light in a soft downward direction. The rings have a soft glow while their white underside achieve optimal light reflection and produce a characteristic symmetric light pattern on the ground.

The adapter is positioned externally from the fixture and can run up to 4 bollards. Maximum distance to last bollard is 30m. Spike: Uses standard cables and connectors which are supplied. Plug and play. Anchor/Base: Use installation cable for legal fixed installation. Adapter requires installation by certified electrician if used with anchor or base.

Housing made of corrosion‑resistant die‑cast aluminum AlSi12, polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, tempered safety glass, anti‑reflective coating from 1 side, dark screenprint, silicon gasket, closure with 4 stainless steel screws, mounting bracket: 1 elongated hole Ø 7 mm, spacing 18 mm, 1 centre hole Ø 8.5 mm, tilt range: 180°, cable gland: M20, connecting terminal: 3 pole, precise PMMA optics, integral driver (AC/DC), CRI > 80, max 2 SDCM, service life L90/B10 > 50.000 h, Beam angle (fwhm): 6°, luminous flux: 563 lm, wattage: 7 W, delivered lumens 77 lm/W, protection type IP65, protection class I, impact resistance IK08, windage area 0,008 m², dimensions (L×H×W): 85 × 86 × 85 mm, weight 0.9 kg. The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE mark. Customized solutions and modifications are possible: Special ral, db or ncs colours as polyester powder coat, luminaires in 2700 K and other colour temperatures and versions for high ambient temperature.

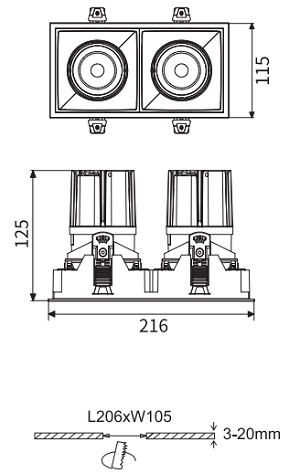

Recessed luminaire with LED light source. Power supply not included. FastPerfect pre-installation frame. To be ordered separately. Remote power supply to be installed in an accessible place. IP20.

Unshielded wall luminaire with high protection class. A luminaire made of aluminium alloy and handblown three-ply opal glass. Luminaire made of aluminium alloy, aluminium and stainless steel. IP65,IK04.
