SPARK

Lightplane 6 is a large, linear luminaire that provides direct or indirect illumination in suspended, wall and surface-mount models. The luminaire features an integral driver along with a high impact satin diffuser. Available with several LED lamping options including multiple outputs, CCTs, tunable white, and color-changing RGB+ White.

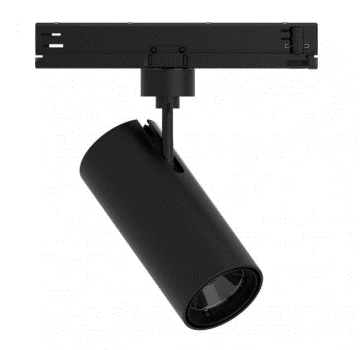

Tracklight made of die-cast aluminium with black powder-coating finish (RAL 9005) and black reflector; LED 13W, measurement Ø55mm; tracklights length 150mm; track adapters length 255mm; luminaire's weight is approximately 500g; rotation 355° and pivot max. 90°; CCT 4000K with an LED Output of 1400lm; with DALI Dim Driver; high color rendering at an index of CRI90; after a lifetime of 50000h min. 80% of the luminous flux with energy efficient CITIZEN LED Chips; 5 years warranty; adjustable beam characteristic with 35°-60° beam angle; lighting perfectly suitable for reading, writing as well as computer and control work according to DIN EN 12464-1 (UGR<19); degree of housing protection according to DIN EN 60529 (IP20); Compatible with GLOBAL/ POWERGEAR 3-Circuit Track System.

Pendant mounted linear luminaire with luminaire body in extruded aluminium. End caps in cast aluminium, diffuser made of satin opal acrylic. Supplied with ceiling canopy, pre-installed 1.5m electrical cable and with 1.5m pendant steel wires. Available in 3 different length.

Miniaturized lighting fixture Laser Blade XS Linear optical element with 3 cells (3 LEDs) Recessed lighting fixture with a radiant surface in die-cast zama, complete with springs for installation. Frame version with a perimeter trim. LED Single Chip High Power 2700K LED Color Rendering Index -CRI90- High-definition Opti Beam reflector in metallized thermoplastic material. MEDIUM optics. Black polycarbonate raster with glossy surface (not painted). Product does not include a driver.
