SPARK

ATOM is a ground recess indicator light and is also suitable for under water light application. ATOM has been designed and manufactured at highest attribute. Utilizing CNC lathed stainless steel body presented exceptional aesthetic as well as sleek tough feeling. LED chips and lenses are from world renowned manufacturers. GFR polymer recess kit allows it to be installed in most extreme environment. Ensuring integrity of manufacture ATOM is supplied with a factory fitted pre-wide cable for ease of installation. The Anti-Humidity kit eliminate condensation inside the housing and prolong the life time of the luminaire. An optional IP68 connectors is recommended as an accessory for trouble free installation.

Housing made of corrosion‑resistant die‑cast aluminum AlSi12, polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, tempered safety glass, anti‑reflective coating from 1 side, with partial frosting for uniform light diffraction and dark silk‑print, silicon gasket, closure with 4 stainless steel screws, wall bracket: 2 drilled holes Ø 7 mm, spacing 35 mm, tilt range: 180°, cable gland: M20, connecting terminal: 3 pole, highly efficient optics made of transparent thermoplastic for precise lighting tasks , integral driver (AC/DC), CRI > 80, max 3 SDCM, service life L80/B20 > 50.000 h, Beam angle (fwhm): 12°, luminous flux: 2539 lm, wattage: 28 W, delivered lumens 91 lm/W, protection type IP65, protection class I, impact resistance IK08, windage area 0,032 m², dimensions (L×H×W): 472 × 50 × 62 mm, weight 2.1 kg. The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE mark.

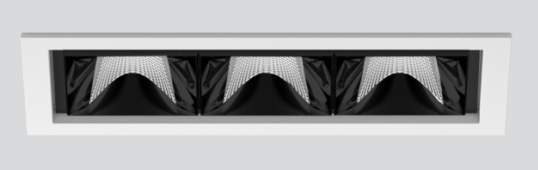

Square recessed ceiling spotlight made of die-cast aluminium with white powder-coating finish (RAL 9016); ON-OFF Driver; LED 13W; measurement 290mm x 45mm; ceiling cutout of 282mm x 37mm with a narrow mounting trim; luminaire's weight is approximately 880g; rotation 355° and pivot max. 90°; CCT 3000K with an LED Output of 1300lm; high color rendering at an index of CRI90; after a lifetime of 50000h min. 80% of the luminous flux with energy efficient OSRAM LED Chips; 5 years warranty; lighting perfectly suitable for reading, writing as well as computer and control work according to DIN EN 12464-1 (UGR<19); degree of housing protection according to DIN EN 60529 (IP20)

Ginko 2.4 projector for outdoor applications/surface mounted (ceiling, wall, ground, spike, strap). Power consumption: 7W/Power supply: 24Vdc/Lumen output at source: 608 lm (3000K, 7W, CRI 90)/Delivered lumen output: 113 lm (3000K, 36°, 7W, CRI 80)/1 high-intensity power LED, 3-step MacAdam, 50 000h L90 B10 (Ta 25°C)/LED colour: 2700K/Optics: optical range 9°—36°: optical system consisting of a plano-convex lens combined with a high-quality technical filter, adjustable with a mechanical focusing system for extreme flexibility of choice of light emission.CRI Colour Rendering Index:  80, >90. TIR lens/CRI Colour Rendering Index: 80/Operating temperature: -20°C — +45°C/Glow wire test: 960°/Photobiological safety: photobiological safety: risk group 1 according to EN 62471:2006/Appliance class: class III/Weight: 400 g/Dimensions: Ø54X83 mm/Energy efficiency class: F (light source) in accordance with EU 2019/2015.
