FLEX TUBE PIXEL_HB QW4

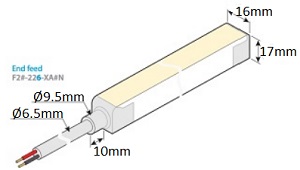

Flex Tube Pixel is a flexible, direct view LED strip, that features individual control of every 3.28” (83.34mm) section. It comes in a 5m spool or custom built lengths to suit project requirements, and features a highly durable secondgeneration silicone body, which is outdoor rated and high impact resistant.IP68,IK08. DIMENSION : L1000 x W17 x H16mm

Specification

Power

12W/M

Color Temperature

RGB

Light Source Type

LED

Lumen Output

700LM/M

Finishing

WHITE

IP Rating

IP68

Color Rendering

CRI80

Driver

ON/OFF DRIVER

LINEALIGHT

SURFACE MOUNTED DOWNLIGHT

OUTDOOR LIGHTING

Single emission ceiling lights for outdoor application. The super warm LED light source with a medium flood light distribution is composed of 1 arrayled LEDs with CCT of 2700 K and a CRI 80; the source luminous flux is 770 lm, with a 128.3 lm/W nominal luminous efficacy. The device body is made of die-cast aluminium en ab - 46100 and features a embossed white ral 9003 finish, processed by means of open pore anodizing + powder coating; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP65; the total weight is of 0.675 kg. The total absorbed power is 7.5 W. The device features protection class I and can be ceiling-mounted. Compliant with the EN 60598-1 standard and its specific provisions.

ILIGHT

CONTROL SYSTEM

This 4 circuit source controller is fully rated for dimming all conventional types of lighting including incandescent lamps, high and voltage halogen lamps and low voltage halogen lamps with electronic transfomers. There are 4 separate dimmer inputs and outputs each with a load capacity of 575W*. Each channel includes a DIP switch for selecting leading, trailing or auto operation depending on the load type. Where loads grater than 2.5A with 2 additional channels of 2.5A.

LINEALIGHT

RECESSED DOWNLIGHT

INDOOR LIGHTING

Single emission downlights for indoor application. The warm white LED light source with a wide flood light distribution is composed of 1 arrayled LEDs. The device body is made of uv resistant polycarbonate and features a embossed black ral 9005 finish, processed by means of liquid painting; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP44; the total weight is of 0.3 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.15 m length. The device features protection class III and can be ceiling-mounted, with a 81 x 81 mm hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.

LINEALIGHT

SURFACE TRACKLIGHT

INDOOR LIGHTING

Single emission projectors for indoor application. The warm white LED light source with a shaper long distance light distribution is composed of 1 arrayled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a embossed black ral 9005 finish, processed by means of powder coating. The ingress protection degree is IP20; the total weight is of 0.455 kg. The device features protection class II and can be ceiling-mounted. Compliant with the EN 60598-1 standard and its specific provisions.
