SPARK

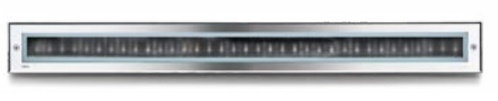

ATOM is a ground recess indicator light and is also suitable for under water light application. ATOM has been designed and manufactured at highest attribute. Utilizing CNC lathed stainless steel body presented exceptional aesthetic as well as sleek tough feeling. LED chips and lenses are from world renowned manufacturers. GFR polymer recess kit allows it to be installed in most extreme environment. Ensuring integrity of manufacture ATOM is supplied with a factory fitted pre-wide cable for ease of installation. The Anti-Humidity kit eliminate condensation inside the housing and prolong the life time of the luminaire. An optional IP68 connectors is recommended as an accessory for trouble free installation.

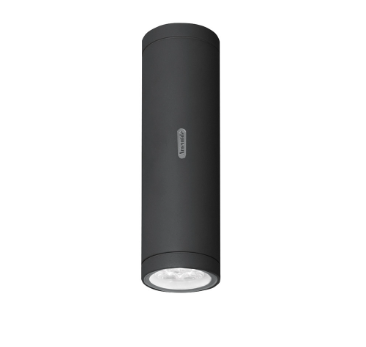

Projector for outdoor applications; surface mounted (ceiling, wall, floor, spike, pole). The luminaire body made of ANTICORODAL 6082 low-copper-content aluminium alloy for excellent resistance to corrosion, made entirely on a CNC lathe. The ingress protection degree is IP66 and IK06.

220-240V power supply integrated. Solid surface or ground installation accessories to be ordered separately.

Zebra Series: Application environment : Outdoor ·Working life : ≥100,000 hours ·Cabinet material : Aluminum alloy ·Brightness : 1000 ~ 5000cd / ㎡ ·Installation method : Hoisting / Fixing ·Certification : CE / CCC / FCC

Can be customized size and shaped.

Pixel Pitch (H/V): 20mm, Pixel Configuration （SIDE):1 x SMD2727, Brightness（CD/m²):1000 ~ 7000, Pixel Density（dot/m²):2500, Transparency: 60%, Cabinet Resolution（dot): 50x50, Module Size（mm): 1000 x 28, Module Resolution: 50 x 2 dot, Cabinet Weight: ≤16Kg / m², Ingress Protection (Front/Back): IP65, Viewing Angle (H/V), 120°/ 120°, Viewing Distance:>20m, Gray Scale: 16 bits, Avg.Power Consumption（W/m²): 600, Refresh Rate（Hz): 3840, Input Voltage: AC100 ~ 240V , 50 / 60 Hz, Drive Mode: Static, Control Mode:  Synchronous display with control PC by DVI, Support Input: Composite , S-Vido , Component , VGA , DVI , HDMI , HD_SDI, Operating Temperature:  -40°C ~ 50°C（work), - 40°C ~ 60°C（store), Operating Humidity: 35% ~ 85%（work), 10% ~ 90% （store）
