LINEALIGHT

SURFACE TRACKLIGHT

INDOOR LIGHTING

82108W85

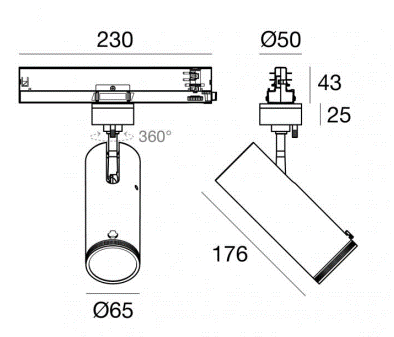

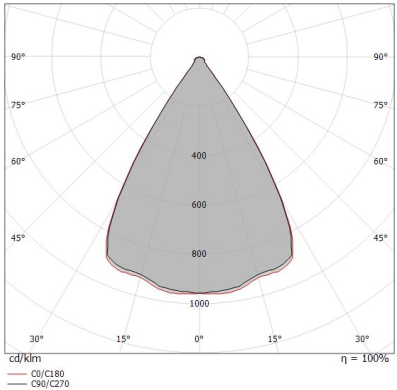

Single emission projectors for indoor application. The warm white LED light source with a adjustable focus light distribution is composed of 1 arrayled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a embossed black ral 9005 finish, processed by means of powder coating. The ingress protection degree is IP20; the total weight is of 0.793 kg. The device features protection class II and can be ceiling-mounted. Compliant with the EN 60598-1 standard and its specific provisions.

Specification

Power

37W

Color Temperature

3000K

Light Source Type

LED

Lumen Output

1428LM

Finishing

BLACK

IP Rating

IP20

Color Rendering

CRI 92

Driver

ON/OFF DRIVER

WE-EF

SPOTLIGHT

OUTDOOR LIGHTING

IP66, Class I. IK07. Marine-grade, die-cast aluminium alloy. 5CE superior corrosion protection including PCS hardware. Safety glass lens. Silicone CCG® Controlled Compression Gasket. Integral EC electronic converter in thermally-separated compartment. Advanced thermal management protects LEDs while optimising lumens output. CAD-optimised optics for superior illumination and glare control. OLC® One LED Concept. DALI Interface. For 2200 K version available on request.

LINEALIGHT

WALL LIGHT

OUTDOOR LIGHTING

Single emission uplights for outdoor application. The natural white LED light source with a medium flood light distribution is composed of 1 powerled LEDs with CCT of 4000 K and a CRI 80; the source luminous flux is 155 lm, with a 155.0 lm/W nominal luminous efficacy. The device body is made of aisi 316 steel and features a steel finish; the diffuser is made of extra clear glass - tempered. The ingress protection degree is IP68; the total weight is of 0.066 kg. The power supply driver is not provided and is to be ordered separately. The total absorbed power is 1 W. The power supply cable is included and features a 1 m length. The device features protection class III and can be wall lights or floormounted with an outer casing, code 99678 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.
