SPARK

Round Lightplane 1 features a slim, round channel that provides direct or indirect/direct linear lighting in both suspended and wall-mount applications. Channel can be rotated up to 360 degrees to aim the output. Driver is REMOTE.

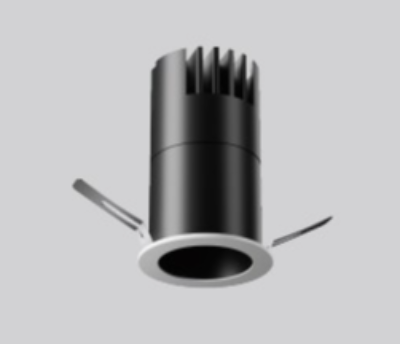

Round ceiling recessed downlight made from die-cast aluminium; surface Black Matt; powder coated, matt texture; RAL 9005; installation without tools using wire springs; recessed depth 90 mm; with COB (Chip on Board) technology for maximum efficiency degree of protection IP20.

Relay module support opening and closing of 9 channels 20A single pole single throw relays for resistive, inductive, capacitive load. 220V ± 10% 50Hz, 20mA. Phase-independent. Manual over-ride for any channel. Intelligent "built in" progragation can be set. Control input: 1 × RS485 network serial port input; 1 × AUX dry contact input. Internal control: Build in programmable logic controller. Network DC power: 90mA DC12V. Presets scenes: 96 (no loss of information due to power failure).

Dot.com come with Small version only needs 25mm of width, a nearly invisible appearance yet with visible impact. The Medium range includes an adjustable version - with tilting possibility of 30° - ideal for instance to emphasize an artwork on the wall. With an output up to 12W per luminaire, the Large range is the most powerful within the Dot.Com series. It comes in both recessed and surface mounted solutions. The luminaire is not only limited to spotlight beam angles, it also has linear wallwashers in its range for a soft, even light effect on vertical surfaces. These come as single luminaires, as modules to fit in the magnetic profiles and as a bespoke trimless profile solution, perfect to adapt the light to your specific desires.
