LINEALIGHT

SURFACE TRACKLIGHT
INDOOR LIGHTING
81626W60

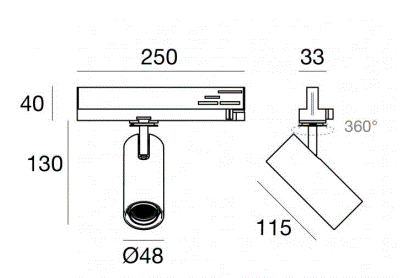

Single emission projectors for indoor application. The warm white LED light source with a medium wide flood light distribution is composed of 1 arrayled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a embossed black ral 9005 finish, processed by means of powder coating. The ingress protection degree is IP20; the total weight is of 0.390 kg. The device features protection class II and can be ceiling-mounted. Compliant with the EN 60598-1 standard and its specific provisions.

Specification

Power
15.5W
Color Temperature
3000K
Light Source Type
LED
Lumen Output
1081LM
Finishing
BLACK
IP Rating
IP20
Color Rendering
CRI 92
Driver
ON/OFF DRIVER

See more

LINEALIGHT
WALLWASHER
OUTDOOR LIGHTING
Single emission lines for outdoor application. The warm white LED light source with a flood light distribution is composed of 9 powerled LEDs. The device body is made of aluminium 6060 and features a anodised aluminum finish, processed by means of 20 µm anodizing; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP67; the total weight is of 2.8 kg. The power supply cable is included and features a 0.2 m length. The device features protection class I and can be wall lights or floormounted with an outer casing, code 98672(for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.
LIGHTFORMS
SURFACE LINEAR LIGHT
OUTDOOR LIGHTING
Suspended / Surface mount linear light direct or indirect distribution. Extruded architectural grade aluminium with minimum 2mm thickness. Diffuse is a white satin, flush diffuser lens that produces smooth, even light across the lens surface. IP65
UNILAMP
SPOTLIGHT
OUTDOOR LIGHTING
Sonic is a huge family of spotlight/ floodlight with LED light source. The family offers ground/ wall mount fixing, pole clamp and wall clamp array, indirect pole and wall light. The wide ranges of accessories like glare shield unit, tree strap, earth spike and anchorage bolt kit makes Sonic customizable for most application. Available in three sizes with a choice of five colors. Sonic is fiited with COB LED with hight CRI in 3000K or 4000K color temperature with 3 SDCM. The front glass cover is flush to the luminaire housing thus dust and water are not accumulated. High specular reflector are used in this luminaire family to achieve an outstanding light output ratio. Aiming can be done through graduated scale by tool. For ease if installation and improved thermal performance the control gear compartment is housed separately to the light engine. Sonic is an ideal choice to accentuate sculptures, walls, building facades, bushed and trees.
SIMES
INGROUND UPLIGHT
OUTDOOR LIGHTING
Die cast EN AB-44300 aluminium (low copper content) housing with high corrosion resistance. Stone wash surface treatment prior to painting process. A4 grade Stainless Steel screws with 2,5-3% molybdenum content which increases the resistance against corrosion. Mechanical resistance IK 10. Maximum load capacity. This luminaire contains built-in LED modules. In case of damage or malfunction please contact the manufacturer to receive additional instructions on how to replace and relative spare parts to order. The LED modules cannot be handled in the luminaire by the end user. This product contains a light source of energy efficiency class: F. LED modules are engineered accordingly to the existing regulations of Lumen Maintenance (LM80) and Technical Memorandum (TM21), where uniformity and quality of the light is 70,000 hours referred to L80 B10 Ta 25 ° C (50,000 hours referable to L80 B10 Ta 40°C). Lifespan of the luminaire min. 50,000 hours at 40°C. Performance Ambient temperature Tq 25°C. Operating ambient temperature range is from -20°C to +50°C. Storage temperature range from -20°C to +60°C.
