Product Detail | Bloxlimited

LINEALIGHT

SURFACE TRACKLIGHT

INDOOR LIGHTING

82612W60

Single emission projectors for indoor application. The warm white LED light source with a medium wide flood light distribution is composed of 1 arrayled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a embossed black ral 9005 finish, processed by means of powder coating. The ingress protection degree is IP20; the total weight is of 0.390 kg. The device features protection class II and can be ceiling-mounted. Compliant with the EN 60598-1 standard and its specific provisions.

Specification

Power

15.5W

Color Temperature

3000K

Light Source Type

LED

Lumen Output

952LM

Finishing

BLACK

IP Rating

IP20

Color Rendering

CRI 98

Driver

ON/OFF DRIVER

LINEALIGHT

LED NEON TUBE

OUTDOOR LIGHTING

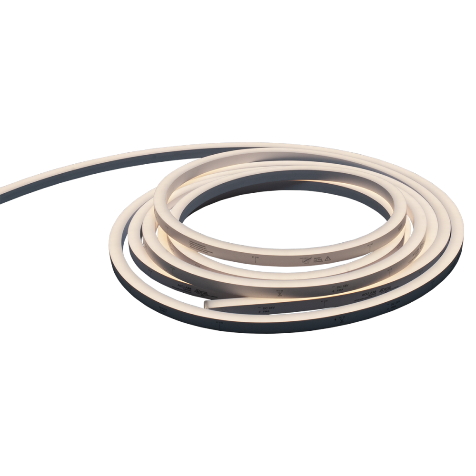

Single emission submerged led neon strip for outdoor application. The super warm white LED light source with a diffused light distribution is composed of 1120 topled LEDs. The luminaire body is made of technopolymer and features a white finish; the diffuser is made of pu. The ingress protection degree is IP68, IK07.

IGUZZINI

RECESSED DOWNLIGHT

INDOOR LIGHTING

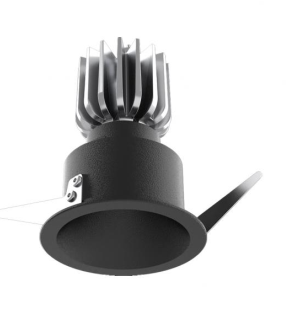

This flush mount luminaire suits false ceilings 1–25 mm thick, secured with steel springs. It features a painted die-cast aluminum body and a scratch-resistant, metallic-finish reflector for high efficiency and visual comfort. Frame versions offer UGR < 19, IP54 on the visible part, and various wiring options: On-Off, DALI, or emergency inverter. Installation space requirements are detailed in the instruction sheet.

LINEALIGHT

PROJECTOR LIGHT

OUTDOOR LIGHTING

Single emission projectors for outdoor application. The super warm LED light source with a spot light distribution is composed of 1 arrayled LEDs with CCT of 2700 K and a CRI 80; the source luminous flux is 2349 lm, with a 130.5 lm/W nominal luminous efficacy. The device body is made of die-cast aluminium en ab - 46100 and features a dark brown finish, processed by means of open pore anodizing + powder coating; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP66.

XAL

LINEAR DOWNLIGHT

INDOOR LIGHTING

Rectangular recessed multi-downlight made of die-cast aluminium; installation without tools in mounting set due to patented ball catch system; rectangular installation housing; for trimless installation in plasterboard ceilings; suitable for ceiling thickness of 12.5/15/20/25 mm; equipped with three medium square light elements; symmetrical light distribution with precise radiation characteristic, beam angle 32°; high quality reflector with micro-faceted, aluminum-vaporised surface; chrome reflector; UGR ≤ 10; VDU compatible workplace luminaire according to DIN EN 12464-1; luminance above 65° ≤ 3000 cd/m²; passive cooling of the LEDs through improved heat sink geometry; light colour 3000 K; binning initial MacAdam ≤ 3 SDCM; CRI ≥ 90; min. 90% of luminous flux after 50000 operating hours; energy-efficient high power LEDs with very good colour rendering; degree of protection IP20; PC2; incl. converter, non dimmable; through wiring connection box, 3-pole or 5-pole, available as an accessory; accessories are listed separately; light source not replaceable; control gear replaceable by an authorized professional; clank-free
