SPARK

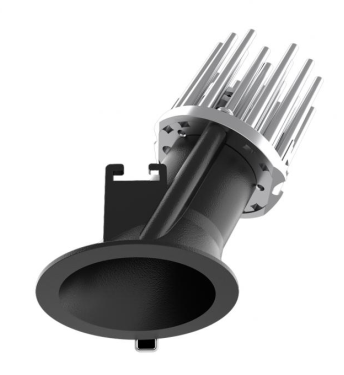

Round recessed luminaire with contact frame. Adjustable version that rotates internally by 355° and tilts by a maximum of 30°. The swivel unit rotates in a set back position in relation to the surface of the ceiling in order to guarantee precise, comfortable light diffusion and reduce direct glare significantly. The swivel unit body is made of die-cast aluminium with a radiant surface that guarantees optimum heat dissipation.

IP65 Spotlight body, bracket and closure flange made of AISI 316L stainless steel with pickling and passivation treatment. With the addition of SurfShield a special scratch-resistant finish treatment that ensures increased resistance of the steel to chemical and atmospheric aggressions. Provided with surge protection electronics and protection against polarity reversal during wiring. Supplied with 5M of cable to powered a 24V CV transformer to be wired in parallel. IP65/IP68, IK08

BN-2-D is a DINrail mounted bridging module that allows 2 or more iLight iCANnetTM network segments to be connected together or arranged logically into floors or areas for ease of management. The bridge is also used to extend the network as a repeater where more than 500m of cabling is required or more than 100 network devices are used on one segment. BN-2-D also allows network messages to be filtered to ensure optimal performance in larger networks. BN-2-D allows multiple network segments to be connected together, enabling up to 65,000 devices to exist on a single system. It also improves reliability of larger systems by isolating and containing any network cabling faults when used correctly.

Outdoor luminaire with direct light street optic. The optical assembly is made of EN1706AC 46100LF aluminium alloy, subjected to a multi-step, pre-treatment process in which the main phases are degreasing, fluorozirconation (a protective surface film) and sealing (with a nano-structured silane layer). The painting stage consists of a primer and a textured acrylic paint, cured at 150 °C, with a high level of weather and UV ray resistance.
