SPARK

RECESSED MAGNETIC TRACK SPOT

INDOOR LIGHTING

SPK6421R-15W-45D

Recessed or Surface mount magnetic track system containing linear light, spot light, wall washer and pendant light module to create your imagination of illumination purposes in a wonderful visual experience. Low voltage DC48V plus double insurance installation system magnetic + click make it work safely. Reflector come with Silver, Chrome Black and White and honeycomb accessory available upon request.

Specification

Power

15W

Color Temperature

3000K

Light Source Type

LED

Lumen Output

1185LM

Finishing

BLACK

IP Rating

IP20

Color Rendering

CRI90

Driver

ON/OFF DRIVER

SIMES

INGROUND UPLIGHT

OUTDOOR LIGHTING

Body made of AISI 316L monoblock stainless steel. Absence of screws (the luminaire is fixed to the recessing box with OR rings). Recessing box in polypropylene. Mechanical resistance of diffusor IK 08 Maximum load capacity 500 Kg. This luminaire contains built-in LED modules. In case of damage or malfunction please contact the manufacturer to receive additional instructions on how to replace and relative spare parts to order. The LED modules cannot be handled in the luminaire by the end user. This product contains a light source of energy efficiency class: F. LED modules are engineered accordingly to the existing regulations of Lumen Maintenance (LM80) and Technical Memorandum (TM21), where uniformity and quality of the light is 70,000 hours referred to L80 B10 Ta 25 ° C (50,000 hours referable to L80 B10 Ta 40°C). Lifespan of the luminaire min. 50,000 hours at 40°C. Performance Ambient temperature Tq 25°C. Operating ambient temperature range is from -20°C to +50°C. Storage temperature range from -20°C to +60°C.

LINEALIGHT

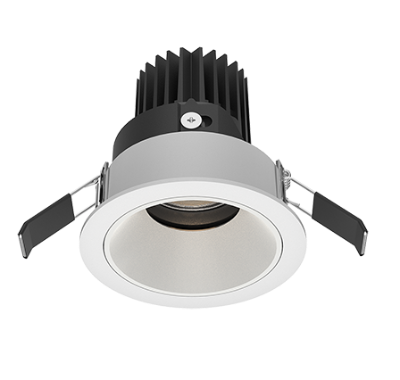

RECESSED DOWNLIGHT

INDOOR LIGHTING

Single emission downlights for indoor application. The warm white LED light source with a medium flood light distribution is composed of 1 arrayled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a embossed black ral 9005 finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP44; the total weight is of 0.93 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.300 m length. The device features protection class III and can be ceiling-mounted, with a 126 x 126 mm hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.

LIGHTFORMS

SUSPENDED LINEAR LIGHT

INDOOR LIGHTING

Micro-S is a clean and compact luminaire that provides direct illumination. The slim channel provides for a minimalist-looking aesthetic. Driver is REMOTE.

TRAXON

FLOODLIGHT

OUTDOOR LIGHTING

The Allegro Washer AC SW is an intelligent, AC line powered high brightness luminaire family. The fixture is controllable via DMX512. The simplicity of the luminaire’s topology means it can be easily daisy-chained to form long runs. Remote Device Management (RDM) circuits are built into each luminaire that enables extensive control and monitoring of the entire lighting installation.
