LINEALIGHT

RECESSED DOWNLIGHT
INDOOR LIGHTING
81274W30
Single emission downlights for indoor application. The warm white LED light source with a medium flood light distribution is composed of 1 powerled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a white finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP44; the total weight is of 0.277 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.170 m length. The device features protection class III and can be ceiling-mounted, with a 70 mm diameter hole (in plasterboard) with an outer casing, code 83064 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.

Specification

Power
8W
Color Temperature
3000K
Light Source Type
LED
Lumen Output
279LM
Finishing
WHITE
IP Rating
IP44
Color Rendering
CRI 92
Driver
ON/OFF DRIVER

See more

XAL
LINEAR DOWNLIGHT
INDOOR LIGHTING

Rectangular recessed multi-downlight made of die-cast aluminium; installation without tools in mounting set due to patented ball catch system; rectangular installation housing; with trim traffic white; suitable for ceiling thickness of 2-25 mm; equipped with four narrow medium round light elements; symmetrical light distribution with precise radiation characteristic, beam angle 22°; high quality reflector with micro-faceted.

BEGA
RECESSED DOWNLIGHT
INDOOR LIGHTING

Recessed ceiling luminaire »PRIMA« with a remote power supply unit Luminaire housing made of cast aluminium Reflector surface made of pure aluminium. Recessed ceiling luminaire · indoor luminaire with symmetrical wide beam light distribution and a remote power supply unit, dimmable via a phase or -section dimmer. For installation in suspended ceilings of 5-30 mm in interior applications. The ingress protection degree is IP20, IK06.

DIMENSIONS; ( WxHxD ) ( 150x92x150)mm.

LIGHTFORMS
SUSPENDED PENDANT LIGHT
INDOOR LIGHTING
Round Lightplane 3 is a highly efficacious LED luminaire with an integrated driver that delivers up to 100 lm/w. From its 76mm diameter channel, Lightplane Round 3 provides either direct, indirect or indirect/direct Illumination. When specified as an indirect/ direct luminaire, a dual circuit option allows the uplight and downlight components to be controlled separately. Individual or continuous row-mounting in suspended or wall configurations.

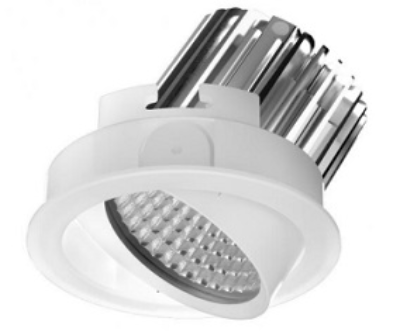

CDN LIGHTING
ADJUSTABLE DOWNLIGHT
INDOOR LIGHTING

Fixed and adjustable in one; When tilting at any angle, patented spherical shielding design helps prevent light leak and gap. Special moving gear tilt design provides stabilized torque for accurate tilt with sound and force feedback when rotating. Besides, Bach 5s series have pull ring equipped for easy maintenance and internal angle mark for accurate aiming. Professional optics, precise and round light spot.
