Preview Real Lighting Products in Blox 3D Simulator Using IES Files
Products
LINEALIGHT
RECESSED DOWNLIGHT
INDOOR LIGHTING
81282W30

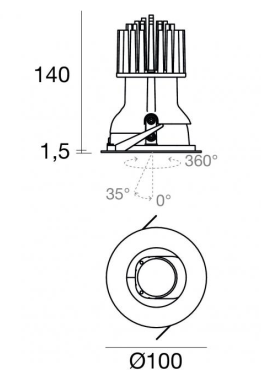

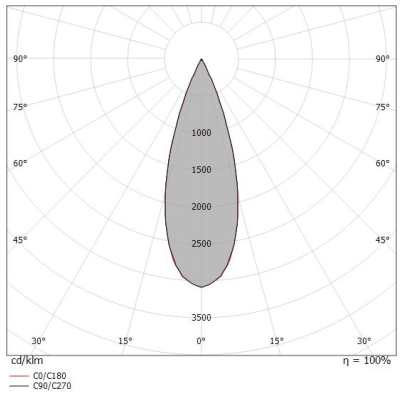

Single emission downlights for indoor application. The warm white LED light source with a medium wide flood light distribution is composed of 1 powerled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a black finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP44; the total weight is of 0.462 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.300 m length. The device features protection class III and can be ceiling-mounted, with a 95 mm diameter hole (in plasterboard) with an outer casing, code 83064 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.
Specification
- Power
- 15W
- Color Temperature
- 3000K
- Light Source Type
- LED
- Lumen Output
- 781LM
- Finishing
- BLACK
- IP Rating
- IP44
- Color Rendering
- CRI 92
- Driver
- ON/OFF DRIVER
