Product Detail | Bloxlimited

LINEALIGHT

RECESSED DOWNLIGHT

INDOOR LIGHTING

80033W15

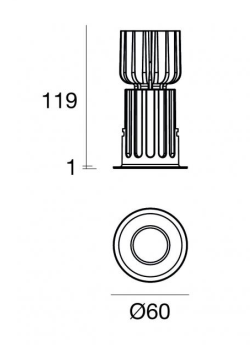

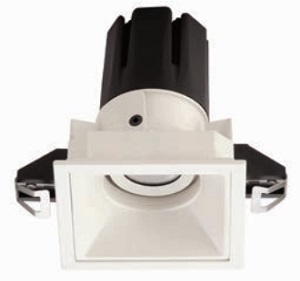

Single emission downlights for indoor application. The warm white LED light source with a spot light distribution is composed of 1 powerled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a embossed white ral 9003 finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP44; the total weight is of 0.400 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.170 m length. The device features protection class III and can be ceiling-mounted, with a 52 mm diameter hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.

Specification

Power

10W

Color Temperature

3000K

Light Source Type

LED

Lumen Output

560LM

Finishing

WHITE

IP Rating

IP44

Color Rendering

CRI 92

Driver

ON/OFF DRIVER

TRAXON

CONTROL SYSTEM

INDOOR LIGHTING

The RDM Isolator repeats DMX and e:pix (one way) as well as RDM (bi-directional) signals over a galvanic isolation barrier. The power supply has a separate isolation barrier (“external” selected) or is aligned with the output potential (“DMX power” selected). Main features include : 1 kV isolation, USITT DMX512A and e:pix compatibility, 1 MBaud data speed (epix), RJ45 power back selectable, Separate, fully isolated power supply port, Flexible data ports (RJ45 or screw terminals), Full ANSI E1.20-2010 RDM support, Status LEDs.

LIGMAN

BOLLARD

OUTDOOR LIGHTING

Outdoor bollard made of die-cast aluminium housing extruded aluminium profile. Column pre-treated before powder coating ensuring high corrosion resistance. Single cable entry. One IP68 connector supplied with 0.2 m of 3x1.0 sqmm outdoor cable. Stainless steel fasteners in grade 304 with zinc flake coating (ZFC). Durable silicone rubber gasket.Frosted glass diffuser. Integral control gear. IP65,IK08.

EWO

POLE LIGHT

OUTDOOR LIGHTING

The CO family of luminaires shares design features with the CN family, where square lighting units are placed within a circular luminaire head. This family is ideal for urban lighting applications including area, street, walkway lighting and lighting of pedestrian crossings. Optically, the CO can be configured with either A–Series high precision lens optics or T–Series low glare ewoLightTile for tunable white applications bringing humancentric lighting to urban spaces. PRTECTION INGRESS DEGREE IS IP66, IK08.
