LINEALIGHT

RECESSED DOWNLIGHT
INDOOR LIGHTING
80051W45

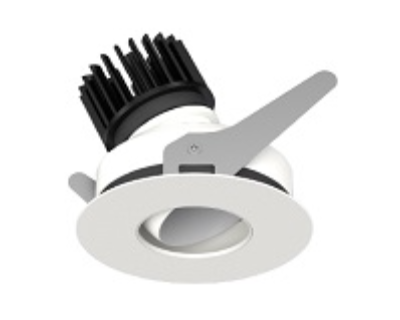

Single emission downlights for indoor application. The warm white LED light source is composed of 1 powerled LEDs. The device body is made of aluminium 6026 and features a embossed white ral 9003 finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP44; the total weight is of 0.047 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.170 m length. The device features protection class III and can be ceiling-mounted, with a 44 mm diameter hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.

Specification

Power
2W
Color Temperature
3000K
Light Source Type
LED
Lumen Output
48LM
Finishing
WHITE
IP Rating
IP44
Color Rendering
CRI 90
Driver
ON/OFF DRIVER

See more

XAL
LINEAR DOWNLIGHT
INDOOR LIGHTING

Rectangular recessed multi-downlight made of die-cast aluminium; installation without tools in mounting set due to patented ball catch system; rectangular installation housing; for trimless installation in plasterboard ceilings; suitable for ceiling thickness of 12.5/15/20/25 mm; equipped with four medium round light elements; symmetrical light distribution with precise radiation characteristic, high quality reflector with micro-faceted.

LEDX LIGHT
FLOODLIGHT
OUTDOOR LIGHTING

Adjustable LED projector with four (4) heads, a yoke allows a 360° rotation about the vertical axis and 90° tilting relative to the horizontal plane. Each head have a pivot point that also allow 90° tilting relative to the horizontal plane. Mechanical aiming locks for both for rotation about the vertical axis and tilting relative to the horizontal plane. 12 pieces matching adapter / clamp for mounting on a pipe about 5 cm in diameter pro lamp and mounting bracket.

DIMENSION : L278*W401*H230MM

LINEALIGHT
RECESSED DOWNLIGHT
INDOOR LIGHTING
Single emission downlights for indoor application. The warm white LED light source with a spot light distribution is composed of 3 powerled LEDs. The device body is made of aluminium and features a embossed white ral 9003 finish, processed by means of coating. The ingress protection degree is IP40; the total weight is of 0.09 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.12 m length. The device features protection class III and can be ceiling-mounted, with a 46 mm diameter hole (in plasterboard) with an outer casing, code 89374 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.
LINEALIGHT
RECESSED DOWNLIGHT
INDOOR LIGHTING

Single emission downlights for indoor application. The warm white LED light source is composed of 1 powerled LEDs. The device body is made of technopolymer and features a white ral 9003 finish; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP40.
