ELR

SURFACE TRACKLIGHT

INDOOR LIGHTING

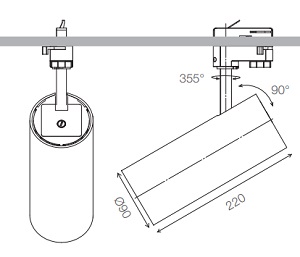

SNOOP 4_100CLO_60D

Snoop 4 Surface mounted tracklight made of aluminium housing. Various color temperature from 2700K to 5000K, warm dim and tunable CCT.

Specification

Power

15.2W

Color Temperature

3000K

Light Source Type

LED

Lumen Output

1224LM

Finishing

WHITE

IP Rating

IP40

Color Rendering

CRI90

Driver

ON/OFF DRIVER

MEYER

UP/DOWN WALL LIGHT

OUTDOOR LIGHTING

Housing made corrosion‑resistant die‑cast aluminum AlSi12, polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, UV stabilised, impact‑resistant polycarbonate cover , silicon gasket, with 4 stainless steel screws, wall arms: 2 drilled holes Ø 6.5 mm, spacing 422 mm, tilt range: 310°, cable gland: PG11, connecting terminal: 3 pole, highly efficient optics made of transparent thermoplastic for precise lighting tasks, integral driver (AC/DC), CRI > 80, max 2 SDCM, service life L90/B10 > 50.000 h, Beam angle (fwhm): 15° / 103°, luminous flux: 2238 lm, wattage: 29 W, delivered lumens 78 lm/W, protection type IP65, protection class I, impact resistance IK10, windage area 0,06 m², dimensions (L×H×W): 470 × 47 × 135 mm, weight 3.4 kg. The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE mark. Customized solutions and modifications are possible: Special ral, db or ncs colours as polyester powder coat, luminaires in 2700 K and other colour temperatures and versions for high ambient temperature.

NEKO

RECESSED DOWNLIGHT

INDOOR LIGHTING

Downlight round made of die-cast aluminium with black powder-coating finish (RAL 9005); ON-OFF Driver; LED 7.5W; measurement Ø50mm; luminaire's weight is approximately 120g; CCT 3000K with an LED Output of 900lm; high color rendering at an index of CRI90; after a lifetime of 50000h min. 80% of the luminous flux with energy efficient CITIZEN LED Chips; 5 years warranty; lighting perfectly suitable for reading, writing as well as computer and control work according to DIN EN 12464-1 (UGR<19); degree of housing protection according to DIN EN 60529 (IP54)

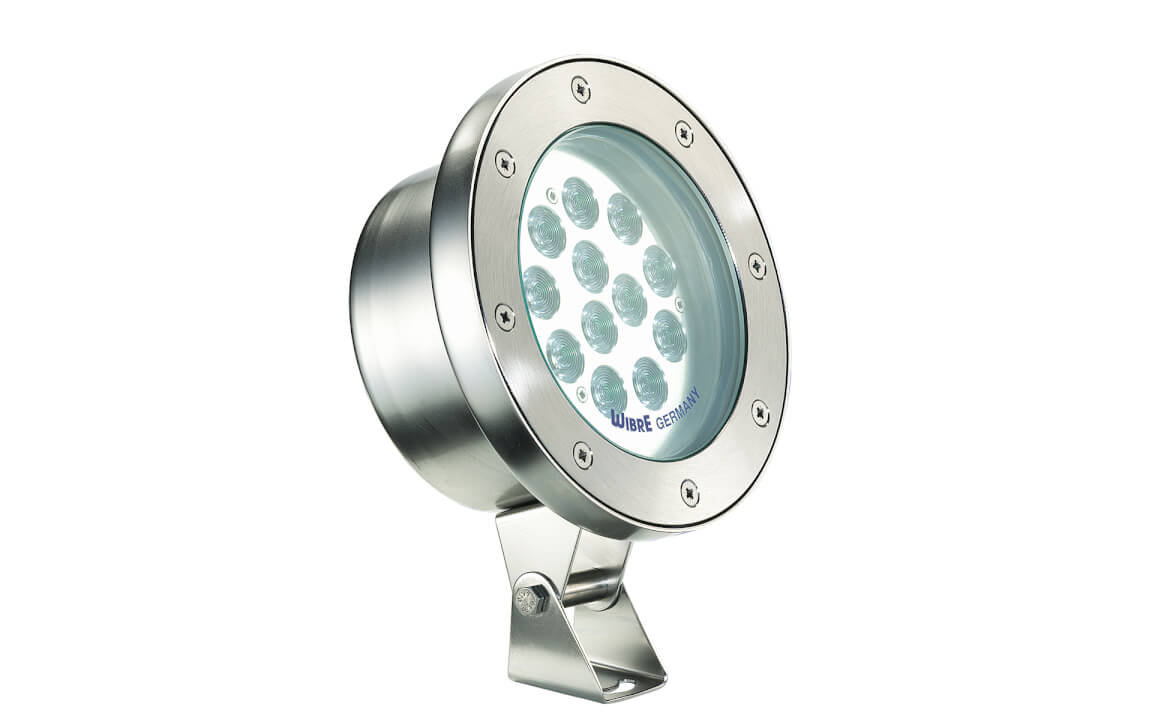

MEYER

PROJECTOR LIGHT

OUTDOOR LIGHTING

Delivered lumens 56 lm/W. IP67, protection class I, impact resistance IK08, windage area 0,021 m2, dimensions: Ø 133 mm, width 153 mm, weight 1.9 kg. Tilt range: 180°. Max. ambient temperature ta 40°. Color Rendering Index CRI > 70. Power supply cable Ø 5 — 9 mm.

LINEALIGHT

CEILING LIGHT

INDOOR LIGHTING

Double emission ceiling lights for indoor application. The warm white LED light source with a diffused light distribution is composed of 78 topled LEDs. The device body is made of aluminium 6060 and features a embossed white ral 9003 finish, processed by means of powder coating; the diffuser is made of pmma. The ingress protection degree is IP40; the total weight is of 8.52 kg. The device features protection class I and can be wall lights or ceilingmounted. Compliant with the EN 60598-1 standard and its specific provisions.
