93847W60

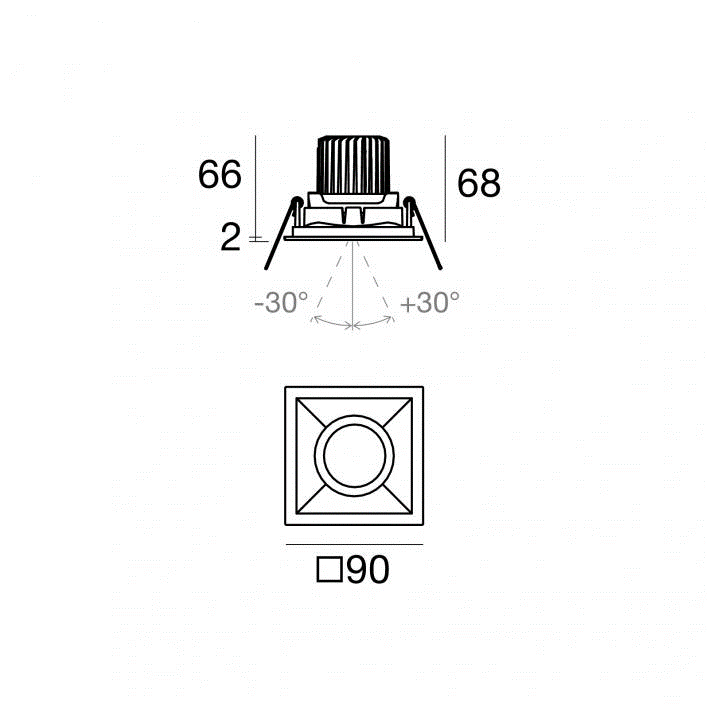

Single emission downlights for indoor application. The warm white LED light source with a wide flood light distribution is composed of 1 arrayled LEDs. The device body is made of uv resistant polycarbonate and features a embossed black ral 9005 finish, processed by means of liquid painting; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP44; the total weight is of 0.3 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.15 m length. The device features protection class III and can be ceiling-mounted, with a 81 x 81 mm hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.

Specification

Power
7W
Color Temperature
3000K
Light Source Type
LED
Lumen Output
613LM
Finishing
BLACK
IP Rating
IP44
Color Rendering
CRI 80
Driver
ON/OFF DRIVER

See more
