LINEALIGHT

RECESSED DOWNLIGHT
INDOOR LIGHTING
86614Z60

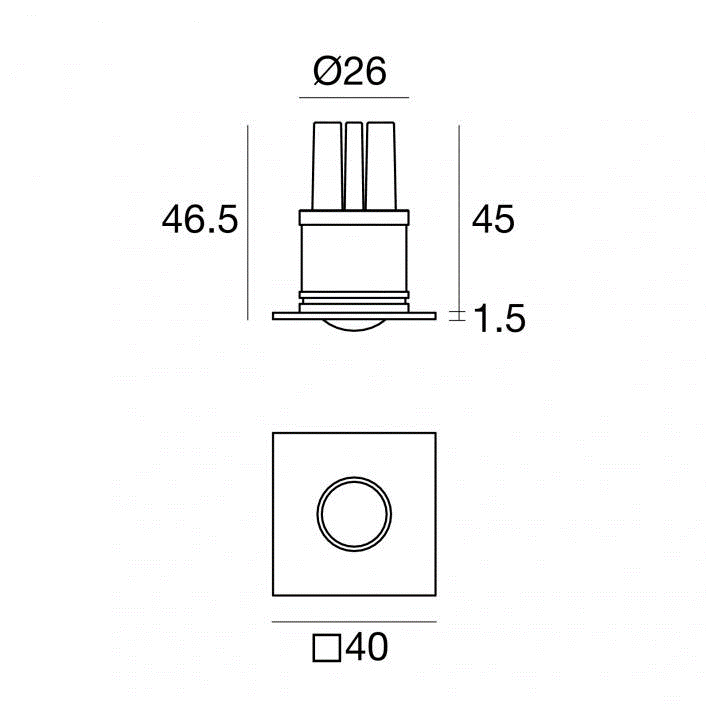

Single emission downlights for indoor application. The RGB LED light source with a wide flood light distribution is composed of 3 powerled LEDs. The device body is made of brass and features a chrome finish, processed by means of electroplating. The ingress protection degree is IP44; the total weight is of 0.079 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.12 m length. The device features protection class III and can be wall lights or ceilingmounted, with a 29 mm diameter hole (in plasterboard) with an outer casing, code 84901 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.

Specification

Power
2.1W
Color Temperature
RGB
Light Source Type
LED
Lumen Output
111LM
Finishing
CHROME
IP Rating
IP44
Color Rendering
CRI 80
Driver
ON/OFF DRIVER

See more

FORMALIGHTING
RECESSED DOWNLIGHT
INDOOR LIGHTING

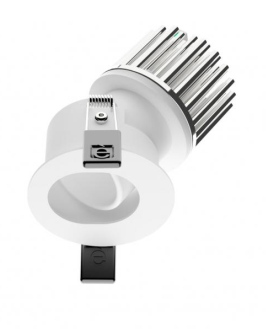

Round or square recessed spotlight. Luminaire body in cast aluminium with optimal passive thermal management. Quick and easy installation via concealed springs for snap-in catch action for minimum ceiling thickness. Supplied prewired with 240mm cable and male/female plugs ready to plug-in (multi or single unit) to power LED converter unit. Adjustable versions tiltable vertically 0-25° and rotable horizontally 350°.
LIGMAN
UNDERWATER LIGHT
OUTDOOR LIGHTING

One cable gland supplied with 2 m of 2x1.0 sqmm outdoor cable

XAL
SUSPENDED LINEAR LIGHT
INDOOR LIGHTING
Ring-shaped suspended luminaire, consisting of single elements in quarter circle or rectangular shape; luminaire housing with rounded edges in aluminium; extremely flat design (only 15mm); modern shape in elegant design for discerning requirements; surface black powder coated; luminaire with 1500 mm cable suspension; with integrated tool-less suspension height adjustment; incl. transparent feed; direct light distribution through LGP body (Light Guiding Prism); side coupled light directed downwards by laser engraving; light control via highly reflective reflector material; indirect light component with special PCBs for increased luminous flux and maximum ceiling illumination; microprismatic PMMA cover; completely homogeneous illumination.
LINEALIGHT
RECESSED DOWNLIGHT
INDOOR LIGHTING
Single emission downlights for indoor application. The warm white LED light source with a flood light distribution is composed of 1 arrayled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a embossed black ral 9005 finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP44; the total weight is of 0.860 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.300 m length. The device features protection class III and can be ceiling-mounted, with a 127 mm diameter hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.
