LINEALIGHT

RECESSED DOWNLIGHT

INDOOR LIGHTING

84200W10

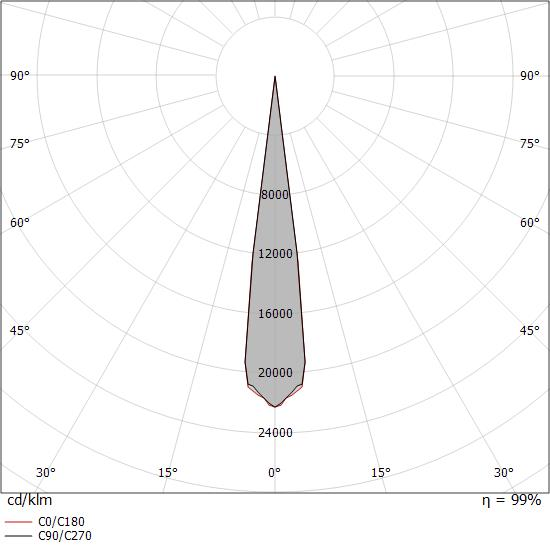

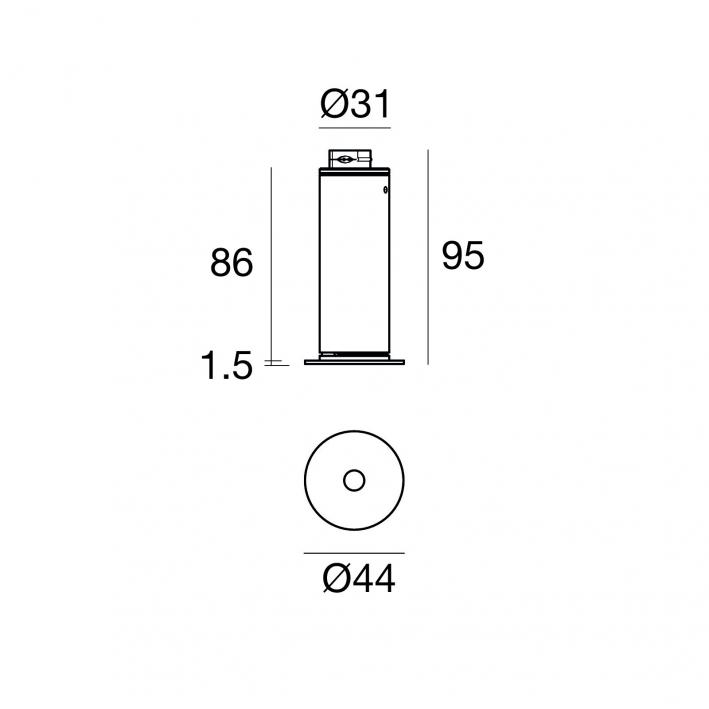

Single emission downlights for indoor application. The warm white LED light source with a spot light distribution is composed of 1 powerled LEDs. The device body is made of aluminium 6026 and features a embossed black ral 9005 finish, processed by means of powder coating. The ingress protection degree is IP20; the total weight is of 0.130 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.170 m length. The device features protection class III and can be ceiling-mounted, with a 36 mm diameter hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.

Specification

Power

Color Temperature

3000K

Light Source Type

LED

Lumen Output

36LM

Finishing

BLACK

IP Rating

IP20

Color Rendering

CRI 92

Driver

ON/OFF DRIVER

FORMALIGHTING

SURFACE MOUNTED DOWNLIGHT

INDOOR LIGHTING

Surface mounted modular system in extruded aluminium. Available in different length configurations based on a 54mm link (2 LED per link) with a 60mm increment. Section 28.5x30mm. Its flexible structure maintain a constant 30mm pitch between the LED. IP20

SPARK

ADJUSTABLE DOWNLIGHT

INDOOR LIGHTING

Recessed adjustable downlight, die cast aluminium housing body. Various choices on CCT, beam angle and inner reflector.

LINEALIGHT

WALLWASHER

OUTDOOR LIGHTING

Single emission lines for outdoor application. The warm white LED light source with a medium flood light distribution is composed of 12 powerled LEDs. The device body is made of uv resistant polycarbonate and features a transparent finish; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP67; the total weight is of 0.89 kg. The power supply cable is included and features a 0.25 m length. The device features protection class II and can be wall lights, ceiling or floor-mounted with an outer casing, code 98844 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.
