LINEALIGHT

CEILING LIGHT

INDOOR LIGHTING

82727W45

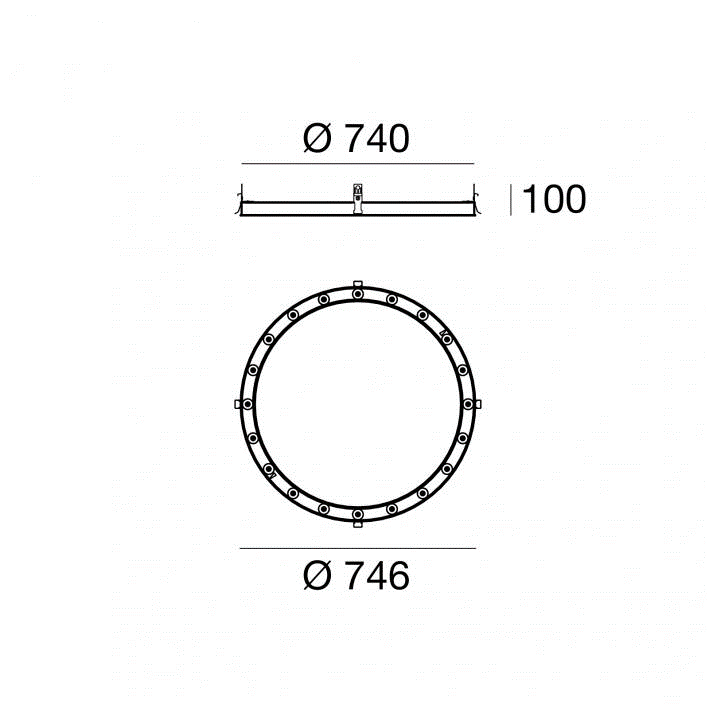

Single emission ceiling lights for indoor application. The warm white LED light source with a wide flood light distribution is composed of 20 powerled LEDs. The device body is made of aluminium 6060 and features a embossed white ral 9003 finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP40; the total weight is of 3.2 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.1 m length. The device features protection class III and can be ceiling-mounted, with a 742 mm diameter hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.

Specification

Power

38W

Color Temperature

3000K

Light Source Type

LED

Lumen Output

2715LM

Finishing

WHITE

IP Rating

IP40

Color Rendering

CRI 80

Driver

ON/OFF DRIVER

MEYER

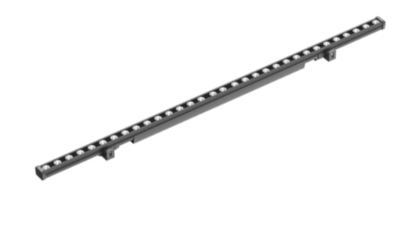

WALLWASHER

OUTDOOR LIGHTING

housing made of corrosion‑resistant die‑cast aluminum AlSi12, polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, tempered safety glass, anti‑reflective coating from 1 side, with partial frosting for uniform light diffraction and dark silk‑print, silicon gasket, closure with 4 stainless steel screws, wall bracket: 2 drilled holes Ø 7 mm, spacing 35 mm, tilt range: 180°, dimensions (L×H×W): 222 × 50 × 62 mm.

RCL

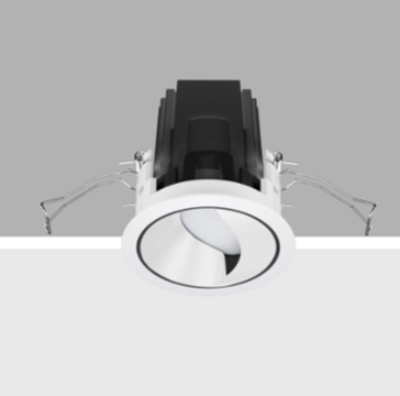

ADJUSTABLE DOWNLIGHT

INDOOR LIGHTING

DR7 3000K LED (35W for light source) standard trim recessed luminaire with 50° optic. Manufactured from LM24 aluminium and glass-filled polycarbonate, with a mild-steel mounting ring. Finished in white (RAL 9010). Voltage is 220-240V 50/60HZ. Luminaire has high-performance colour rendering of 90+ CRI. Luminaire can be rotated, with +/- 175° movement through the pan axis and •+/-35° through the tilt axis, at a resolution of less than 1° in either axis.
