92132W08

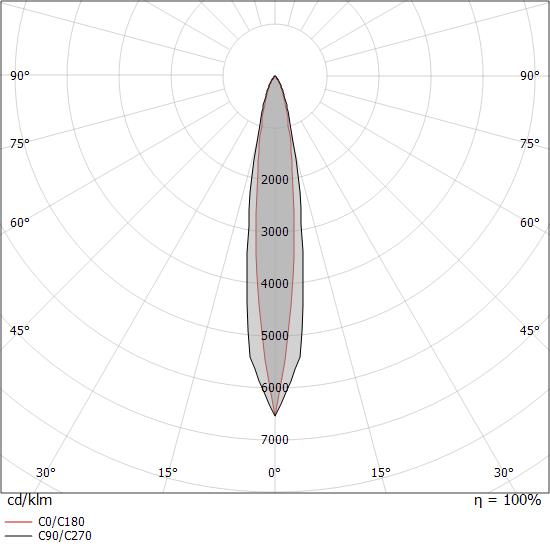

Single emission lines for outdoor application. The warm white LED light source with a spot light distribution is composed of 6 powerled LEDs. The device body is made of aluminium 6060 and features a anodised aluminum finish, processed by means of 20 µm anodizing; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP67; the total weight is of 1.5 kg. The power supply cable is included and features a 0.2 m length. The device features protection class I and can be wall lights or floormounted with an outer casing, code 98671 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.
Specification
- Power
- 14.5W
- Color Temperature
- 3000K
- Light Source Type
- LED
- Lumen Output
- 1038LM
- Finishing
- ANODISED ALUMINUM
- IP Rating
- IP67
- Color Rendering
- CRI 80
- Driver
- ON/OFF DRIVER
