LED LINEAR

INGROUND LINEAR LIGHT

OUTDOOR LIGHTING

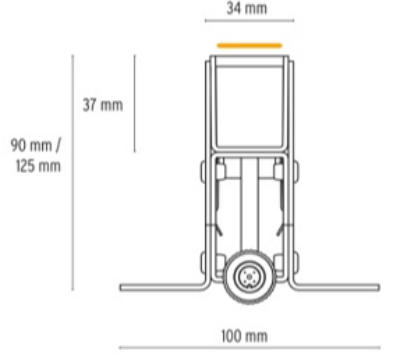

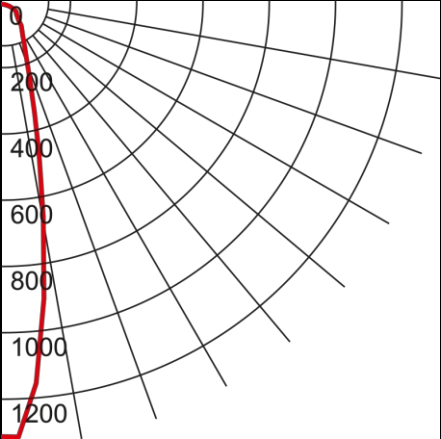

VARIOLED OCEANOS IQ WHITE HIGH CRI HD12

Robust in ground grazer made of V4A stainless steel available in standard lengths and 10° and 30° beam optic. Oceanos has an environmental resistance of IP67. This is made to the unique polyurethane encapsulation. Different optics enable adaptability to different projects. The 10° optic suit well for wall grazing, as the 30° and opal are suitable for accent lighting. Oceanos has an IK10 classification hence is very robust. The ability to withstand a pressure of 30kN is equivalent to being traversed by a vehicle according to DINEN605982.

Specification

Power

12W/M

Color Temperature

TW 2200K - 5000K

Light Source Type

LED

Lumen Output

1260LM/M

Finishing

ALUMINIUM

IP Rating

IP67

Color Rendering

CRI 85

Driver

DMX 512

IGUZZINI

SPOTLIGHT

OUTDOOR LIGHTING

Spotlight designed to use LED lamps and a Wide Flood optic. The optical assembly and base is made of EN1706AC 46100LF aluminium alloy and subjected to a multi-step, pre-treatment process, in which the main phases are degreasing, fluorozirconation (a protective surface film) and sealing (with a nano-structured silane layer). The following painting stage consists of a primer and a liquid acrylic paint, cured at 150°C, with a high level of weather and UV ray resistance. 5 mm thick tempered sodium-calcium closing glass. Double adjustability allows a 360° rotation about the vertical axis and 90° tilting relative to the horizontal plane. The ingress protection degree is IP66,IK07.

FORMALIGHTING

SUSPENDED LINEAR LIGHT

INDOOR LIGHTING

Pendant mounted luminaire with light body in extruded aluminium inclusive of integrated diamond faceted nodazzle louvre in thermoplastic. Light body measuring 45mm in width and 65mm in height. Supplied with ceiling canopy and pre-installed 1.5m electrical cable and with 2 x 1.5m pendant steel wires.

LINEALIGHT

RECESSED DOWNLIGHT

INDOOR LIGHTING

Single emission downlights for indoor application. The warm white LED light source with a flood light distribution is composed of 1 arrayled LEDs. The device body is made of uv resistant polycarbonate and features a embossed black ral 9005 finish, processed by means of liquid painting; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP44; the total weight is of 0.156 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.15 m length. The device features protection class III and can be ceiling-mounted, with a 64 mm diameter hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.
