Product Detail | Bloxlimited

LINEALIGHT

WALLWASHER

OUTDOOR LIGHTING

92132W30

Single emission lines for outdoor application. The warm white LED light source with a medium flood light distribution is composed of 6 powerled LEDs. The device body is made of aluminium 6060 and features a anodised aluminum finish, processed by means of 20 µm anodizing; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP67; the total weight is of 1.5 kg. The power supply cable is included and features a 0.2 m length. The device features protection class I and can be wall lights or floormounted with an outer casing, code 98671 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.

Specification

Power

14.5W

Color Temperature

3000K

Light Source Type

LED

Lumen Output

974LM

Finishing

ANODISED ALUMINUM

IP Rating

IP67

Color Rendering

CRI 80

Driver

ON/OFF DRIVER

LIGHTFORMS

WALL LIGHT

INDOOR LIGHTING

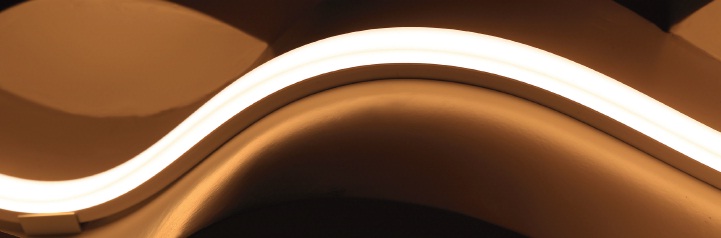

Lightplane Linear Up & Under is a compact and streamlined luminaire with a single extruded aluminium channel that provides both direct and indirect illumination. Integral driver configuration with flush lens. Individual or continuous row mounting.The fixture is available with several LED lamping options including multiple outputs and CCTs, tunable white and colour-changing RGB+ White.

LINEALIGHT

RECESSED DOWNLIGHT

INDOOR LIGHTING

Single emission downlights for indoor application. The warm white LED light source with a medium flood light distribution is composed of 1 powerled LEDs. The device body is made of aluminium 6026 and features a chalk white finish, processed by means of powder coating. The ingress protection degree is IP20; the total weight is of 0.13 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0,17 m length. The device features protection class III and can be ceiling-mounted with an outer casing, code 98502 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.

WE-EF

SPOTLIGHT

OUTDOOR LIGHTING

IP66. IK07. Marine-grade, all aluminium construction. 5CE superior corrosion protection including PCS hardware. Safety glass lens. Silicone CCG® Controlled Compression Gasket. Luminaire is factory-sealed and does not need to be opened during installation. Advanced thermal management protects LEDs while optimising lumens output. CAD-optimised optics for superior illumination and glare control. Two cable entries. Mains voltage versions, ON-OFF Class I. Integral EC electronic converter. 24VDC low voltage versions, ON-OFF Class III. DALI (only 4W available) Class I. Knuckle permits 340° rotation, forward tilt 73° and backward tilt 90°. Remote 24VDC power supply to be ordered separately.Optical accessories are factory-installed. To be specified at time of ordering.

SIMES

SURFACE MOUNTED DOWNLIGHT

OUTDOOR LIGHTING

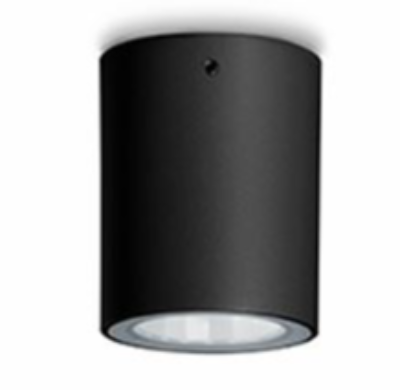

Surface mount ceiling luminaire made of aluminium housing with high corrosion resistance. Stone wash surface treatment prior to painting process. A4 grade Stainless Steel screws with 2,5-3% molybdenum content which increases the resistance against corrosion. Silicone gaskets. IP66
