81606W08

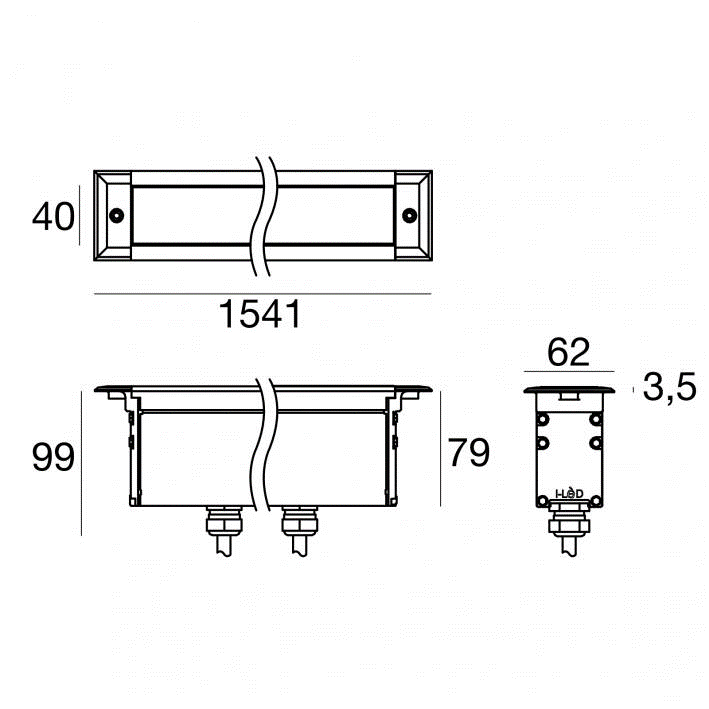

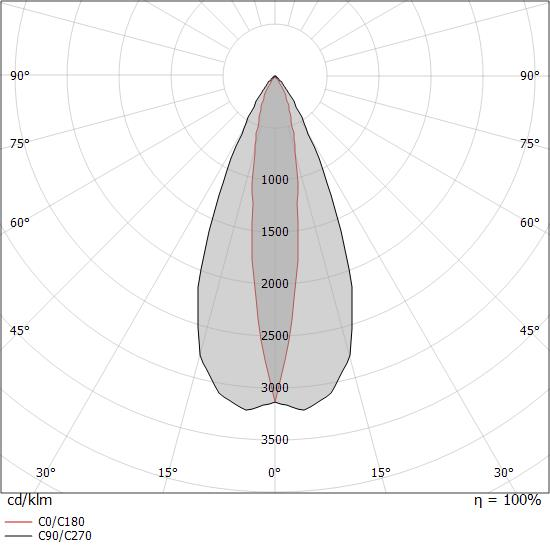

Single emission lines for outdoor application. The warm white LED light source with a medium wide flood light distribution is composed of 27 powerled LEDs. The device body is made of aluminium 6060 and features a anodised aluminum finish, processed by means of 20 µm anodizing; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP67; the total weight is of 7 kg. The power supply cable is included and features a 0.2 m length. The device features protection class I and can be wall lights or floormounted with an outer casing, code 99760 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.

Specification

Power

61.4W

Color Temperature

3000K

Light Source Type

LED

Lumen Output

4227LM

Finishing

ANODISED ALUMINUM

IP Rating

IP67

Color Rendering

CRI 80

Driver

ON/OFF DRIVER

BEGA

INGROUND UPLIGHT

OUTDOOR LIGHTING

Luminaires and installation housings are made of highly corrosion-resistant aluminium BEGA Tricoat® coating technology. Cover ring made of stainless steel Steel grade no. 1.4301 Ring made of glass fibre reinforced synthetic material Clear safety glass Reflector surface made of pure aluminium Recess housing with cable entry for cable conduit, max ø 20 mm 1,8m water-resistant connecting cable 07RN8-F 5G1@ with implemented water stopper and 1.2m PVC cable conduit. IP68, IK10

DIEMNSION : Ø335*H248MM

XAL

LINEAR DOWNLIGHT

INDOOR LIGHTING

Rectangular recessed multi-downlight made of die-cast aluminium; equipped with two (L2) / three (L3) individually selectable or pre-specified, customised light elements; installation without tools in mounting set with ball catch system; easy electrical installation by means of reverse polarity protected plug-in connections; suitable for ceiling thickness of 2-25 mm; surface powder coated; installation possible in different housings; high-quality reflector with micro-faceted.

WIBRE

UNDERWATER LIGHT

OUTDOOR LIGHTING

Protection class IP68 – up to 5m water depth. Protection class IP69 - protection against high pressure and high jet water temperatures. Entirely made of stainless steel 316Ti. Round attachment cover, made of stainless steel 316Ti, height 3 mm. POW-LED cold white, warm white, neutral white. POW-LED blue. Multichip POW-LED RGB. Multichip POW-LED RGB-W. Multichip POW-LED Dynamic white. Operating mode: constant current. Rotationally symmetric light distribution. Cable gland M16x1,5. Constant-current power source/RGB controller external. Installation housing made of stainless steel 316Ti with 1.5 m cable protection tube and connection socket (order separately). Supplied with lamp and 3 m of underwater cable.
