LINEALIGHT

WALLWASHER

OUTDOOR LIGHTING

81615W30

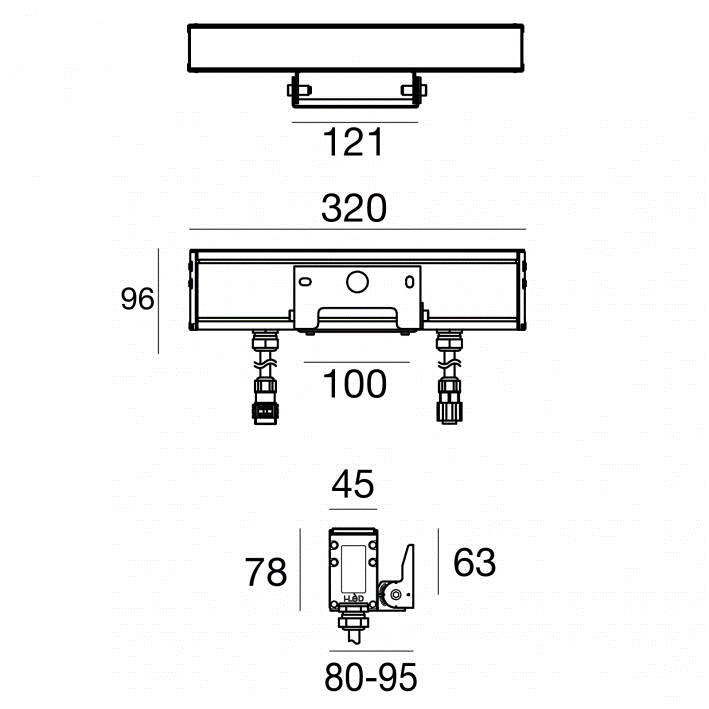

Single emission lines for outdoor application. The warm white LED light source is composed of 11 powerled LEDs. The device body is made of aluminium 6060 and features a anodised aluminum finish, processed by means of 20 µm anodizing; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP67; the total weight is of 1.1 kg. The power supply cable is included and features a 0.2 m length. The device features protection class I and can be wall lights-mounted. Compliant with the EN 60598-1 standard and its specific provisions.

Specification

Power

12.5W

Color Temperature

3000K

Light Source Type

LED

Lumen Output

687LM

Finishing

ANODISED ALUMINUM

IP Rating

IP67

Color Rendering

CRI 80

Driver

ON/OFF DRIVER

SIMES

INGROUND UPLIGHT

OUTDOOR LIGHTING

Die cast EN AB-44100 aluminium housing (copper free) with high corrosion resistance. Marine grade stainless steel AISI 316L front trim 2 mm thick. Toughened glass diffuser 12mm thick for COMPACT 200, 12mm thick for COMPACT 275, 15mm thick for COMPACT 360. Luminaire hard wired with single neoprene cable with cable gland. Stainless steel screws. Recessing box in polypropylene arranged for cable entries in all 4 sides. Silicone gaskets.

XAL

RECESSED DOWNLIGHT

INDOOR LIGHTING

Round recessed downlight in die-cast aluminium housing, surface in jet black finishes. 360° rotatable and 30° tiltable. Suitable for ceiling thickness of 2-25 mm, passive cooling of the LEDs through improved heat sink geometry with COB (Chip on Board) technology for maximum efficiency. No appearance of multiple shadows. IP40

DIMENSION : Ø80*H48MM

SPARK

RECESSED LINEAR LIGHT

INDOOR LIGHTING

This luminaire is designed to use for office building, schools, storage areas, hospitals, and other working areas where is required highly uniformity illumination, etc.
