97847W00
Single emission lines for indoor application. The warm white LED light source with a diffused light distribution is composed of 180 topled LEDs. The device body is made of PC and features a opal white finish; the diffuser is made of PC. The ingress protection degree is IP40; the total weight is of 0.050 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.2 m length. The device features protection class III and can be wall lights or ceilingmounted. Compliant with the EN 60598-1 standard and its specific provisions.

Specification

Power
12W
Color Temperature
3000K
Light Source Type
LED
Lumen Output
452LM
Finishing
WHITE
IP Rating
IP40
Color Rendering
CRI 92
Driver
ON/OFF DRIVER

See more

LIGHTFORMS
SUSPENDED PENDANT LIGHT
INDOOR LIGHTING
Lightplane 2.5 is a compact and streamlined luminaire that provides direct, indirect or directindirect illumination from a suspended, wall or surface mounted channel. The fixture is available with several LED lamping options including multiple outputs and CCTs, tunable white and colour-changing RGB+White. A Low UGR option is available with a prismatic lens is also available.
IGUZZINI

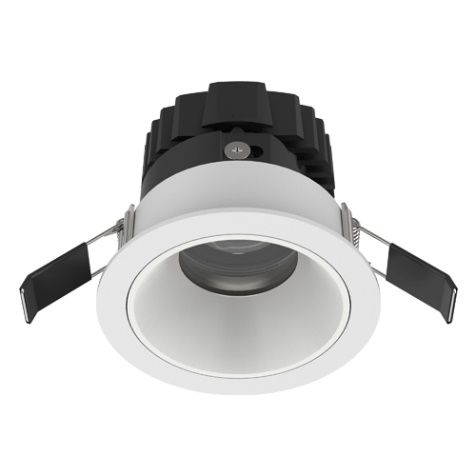

ADJUSTABLE DOWNLIGHT
INDOOR LIGHTING

Extractable, adjustable, recessed luminaire for warm white LED lamp with high color rendering index. Passive heat dispersion system. Die-cast aluminium main body and frame; stainless steel rotation hinge. Rotation ring with safety cover in a high resistance thermoplastic material. Body adjusted with a manual manoeuvre device: internal 40° - external 65° - rotation on 355° axis. Reflector with high efficiency super--pure aluminium optic - wideflood beam angle.

WE-EF
SPOTLIGHT
OUTDOOR LIGHTING
IP66, Class I. IK07. Marine-grade, die-cast aluminium alloy. 5CE superior corrosion protection including PCS hardware. Safety glass lens. Silicone CCG® Controlled Compression Gasket. Integral EC electronic converter in thermally-separated compartment. Advanced thermal management protects LEDs while optimising lumens output. CAD-optimised optics for superior illumination and glare control. OLC® One LED Concept. DALI Interface. For 2200 K version available on request.
XAL
ADJUSTABLE DOWNLIGHT
INDOOR LIGHTING

Square ceiling mounted spotlight made of aluminium; surface jet black powder coated; Inner colour lacquered in jet black; 20° tiltable; luminaire housing can be attached to mounting plate without tools by interlock; passive cooling of the LEDs through improved heat sink geometry; with COB (Chip on Board) technology for maximum efficiency; no appearance of multiple shadows; light colour 3500 K; ≤ 2 SDCM (initial MacAdam); CRI ≥ 90; min. 90% of luminous flux after 100000 operating hours
