LINEALIGHT

WALLWASHER

OUTDOOR LIGHTING

83890W00

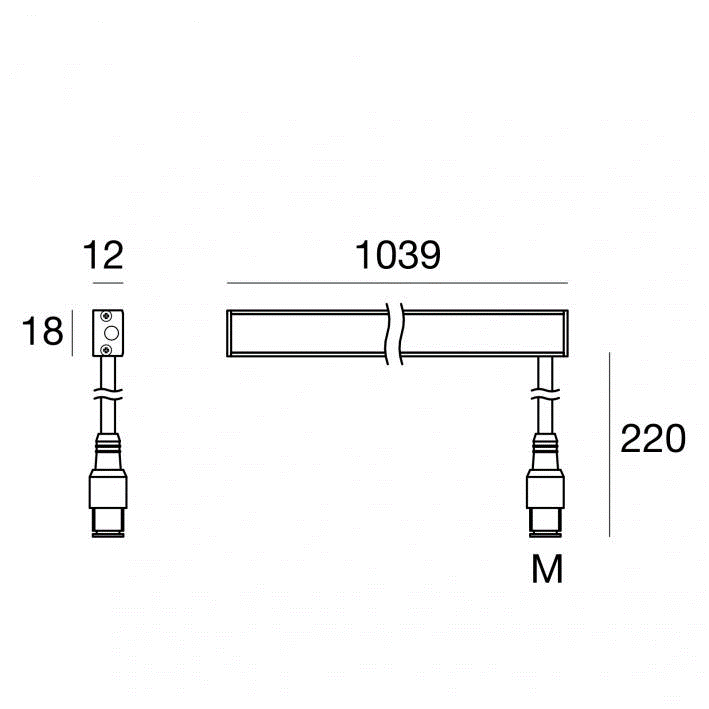

Single emission lines for outdoor application. The warm white LED light source with a diffused light distribution is composed of 120 stripled LEDs. The device body is made of aluminium 6060 and features a anodised aluminum finish, processed by means of 20 µm anodizing; the diffuser is made of silicone resin. The ingress protection degree is IP66; the total weight is of 0.360 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.220 m length. The device features protection class III and can be wall lights or ceilingmounted. Compliant with the EN 60598-1 standard and its specific provisions

Specification

Power

9.5W

Color Temperature

3000K

Light Source Type

LED

Lumen Output

330LM

Finishing

ANODISED ALUMINUM

IP Rating

IP66

Color Rendering

CRI 80

Driver

ON/OFF DRIVER

XAL

LINEAR DOWNLIGHT

INDOOR LIGHTING

Rectangular recessed multi-downlight made of die-cast aluminium; installation without tools in mounting set due to patented ball catch system; rectangular installation housing; with trim traffic white; suitable for ceiling thickness of 2-25 mm; equipped with four wide flood round light elements; symmetrical light distribution with precise radiation characteristic, beam angle 72°; high quality reflector with micro-faceted, aluminum-vaporised surface; chrome reflector; passive cooling of the LEDs through improved heat sink geometry; light colour 3000 K; binning initial MacAdam ≤ 3 SDCM; CRI ≥ 90; min. 90% of luminous flux after 50000 operating hours; energyefficient high power LEDs with very good colour rendering; degree of protection IP20; PC2; incl. converter, non dimmable; through wiring connection box, 3-pole or 5-pole, available as an accessory; accessories are listed separately; light source not replaceable; control gear replaceable by an authorized professional; clank-free;

SPARK

ADJUSTABLE DOWNLIGHT

INDOOR LIGHTING

Recessed adjustable downlight come with snoot, luminaire body made of aluminium housing with white powder coated finish. Black finish and Honeycomb accessory available upon request.

XAL

SUSPENDED LINEAR LIGHT

INDOOR LIGHTING

IGUZZINI

LINEAR DOWNLIGHT

INDOOR LIGHTING

Recessed luminaire consisting of a lamp device, 6-cell emission raster and operating components. Version for UGR < 19 controlled luminance lighting - in compliance with the standard for use in environments with video monitors. LED lamps with high color rendering index. Main body made of extruded aluminium - anodised finish - cast zamak end caps - natural finish. Polycarbonate LED lamp support. Steel wire fixing springs. The optical system consists of a translucent textured methacrylate raster, created with a catadioptric system (patented Opti Beam Diamond optic) - with no galvanic treatments - combined with a gloss finish PET cover.
