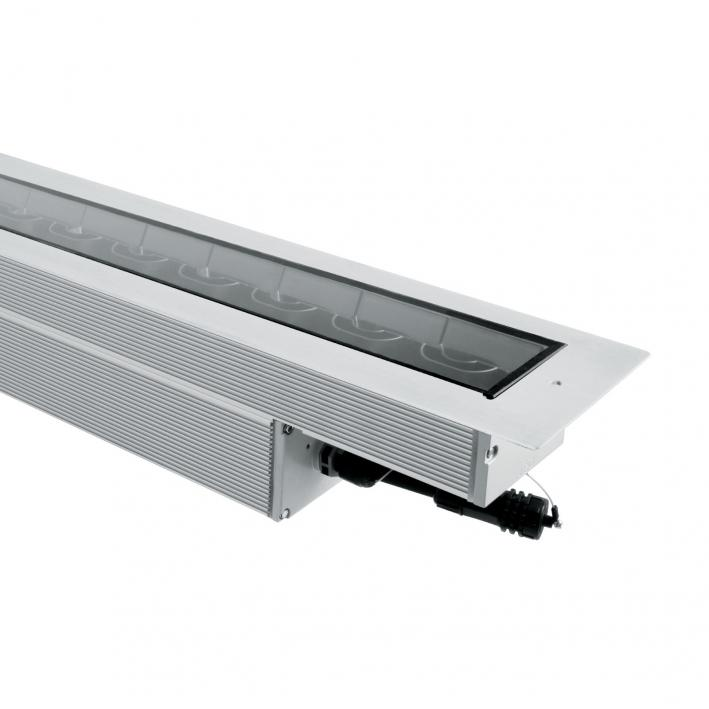

LINEALIGHT

WALLWASHER

OUTDOOR LIGHTING

82326W08

Single emission lines for outdoor application. The warm white LED light source is composed of 12 powerled LEDs. The device body is made of aluminium 6060 and features a anodised aluminum finish, processed by means of 20 µm anodizing; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP68; the total weight is of 1.020 kg. The power supply cable is included and features a 0.25 m length. The device features protection class II and can be floor-mounted with an outer casing, code 99913 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.

Specification

Power

10.1W

Color Temperature

3000K

Light Source Type

LED

Lumen Output

517LM

Finishing

ANODISED ALUMINUM

IP Rating

IP68

Color Rendering

CRI 80

Driver

ON/OFF DRIVER

LINEALIGHT

WALLWASHER

OUTDOOR LIGHTING

Single emission lines for outdoor application. The warm white LED light source with a asymmetric wallwasher light distribution is composed of 6 powerled LEDs. The device body is made of aluminium 6060 and features a anodised aluminum finish, processed by means of 20 µm anodizing; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP67; the total weight is of 1.5 kg. The power supply cable is included and features a 0.2 m length. The device features protection class I and can be wall lights or floormounted with an outer casing, code 98671 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.

IGUZZINI

SPOTLIGHT

OUTDOOR LIGHTING

Spotlight designed to use LED lamps and a Spot optic. The optical assembly and base is made of EN1706AC 46100LF aluminium alloy and subjected to a multi-step, pre-treatment process, in which the main phases are degreasing, fluorozirconation (a protective surface film) and sealing (with a nano-structured silane layer). The following painting stage consists of a primer and a liquid acrylic paint, cured at 150°C, with a high level of weather and UV ray resistance.

LUCE & LIGHT

UNDERWATER LIGHT

OUTDOOR LIGHTING

SIMES

INGROUND UPLIGHT

OUTDOOR LIGHTING

Body made of AISI 316L monoblock stainless steel. Absence of screws (the luminaire is fixed to the recessing box with OR rings). Recessing box in polypropylene. Mechanical resistance of diffusor IK 08 Maximum load capacity 500 Kg. This luminaire contains built-in LED modules. In case of damage or malfunction please contact the manufacturer to receive additional instructions on how to replace and relative spare parts to order. The LED modules cannot be handled in the luminaire by the end user. This product contains a light source of energy efficiency class: F. LED modules are engineered accordingly to the existing regulations of Lumen Maintenance (LM80) and Technical Memorandum (TM21), where uniformity and quality of the light is 70,000 hours referred to L80 B10 Ta 25 ° C (50,000 hours referable to L80 B10 Ta 40°C). Lifespan of the luminaire min. 50,000 hours at 40°C. Performance Ambient temperature Tq 25°C. Operating ambient temperature range is from -20°C to +50°C. Storage temperature range from -20°C to +60°C.
