LIGHTFORMS

WALL LIGHT

INDOOR LIGHTING

LF156820

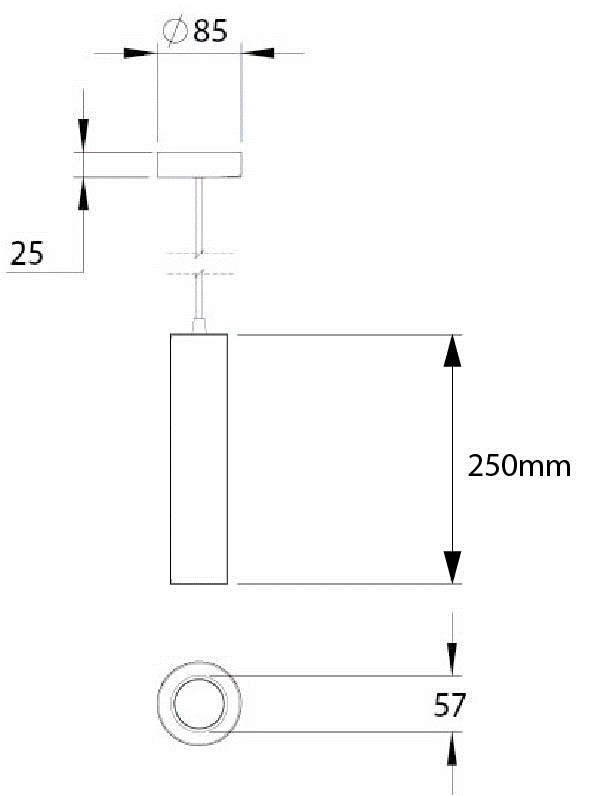

Draco is the tallest member of our cylinder lighting family. Its strong long form utilises LEDil reflectors and Osram chips (with 1 and 2 Macadam's Ellipses colour consistency). Draco is available is in a full range colour temperatures and with integral control gear as standard.

Specification

Power

13.6W

Color Temperature

3000K

Light Source Type

LED

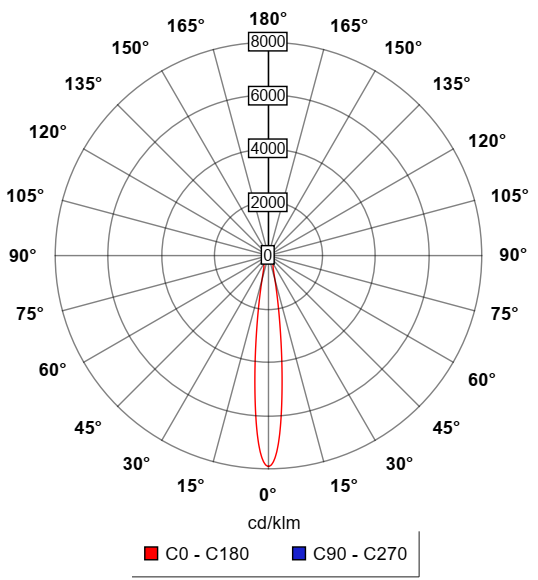

Lumen Output

1450LM

Finishing

BLACK

IP Rating

IP20

Color Rendering

CRI 90

Driver

ON/OFF DRIVER

FLOS

RECESSED DOWNLIGHT

INDOOR LIGHTING

LED lighting module, with low glare, to be inserted in the recessed frames (not included), installation through a bayonet system with interchangeable spots. Remote driver not included. The ingress protection degree is IP20.

ILIGHT

CONTROL SYSTEM

The iLight SCD-96-D is a DINrail mount, 96 channel DMX source controller designed to provide control to any DMX512 driver or luminaire. Used for seamless control of DMX lighting devices, LED colour changing units and entertainment luninaires. Each channel can be assigned a DMX address from iLight Device Editor. The SCD-96-D offers comprehensive control via iLight user interfaces to activate scenes and sequences.

UNILAMP

FLOODLIGHT

OUTDOOR LIGHTING

KUBIK is a robust cube-shaped spotlight with LED light source. The family offers ground/ wall mount fixing, pole clamp and wall clamp array, indirect pole and wall light. The front glass cover is flush to the luminaire housing thus dust and water are not accumulated. High efficiency reflectors and lens are used in this luminaire family. Aiming can be done through graduated scale by tool. The luminaire housing separate LED and driver compartment to achieve lower operating temperature and longer service time. KUBIK is suitable to light up object from short to medium distance like bushes, plants, sculptures, flags, signboards, columns, building facets, etc.

LINEALIGHT

RECESSED DOWNLIGHT

INDOOR LIGHTING

Single emission downlights for indoor application. The warm white LED light source with a spot light distribution is composed of 1 powerled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a embossed black ral 9005 finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP44; the total weight is of 0.250 kg. The power supply driver is not provided and is to be ordered separately. The device features protection class III and can be ceiling-mounted, with a 64 mm diameter hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.
