LIGHTFORMS

SUSPENDED PENDANT LIGHT

INDOOR LIGHTING

LF156898

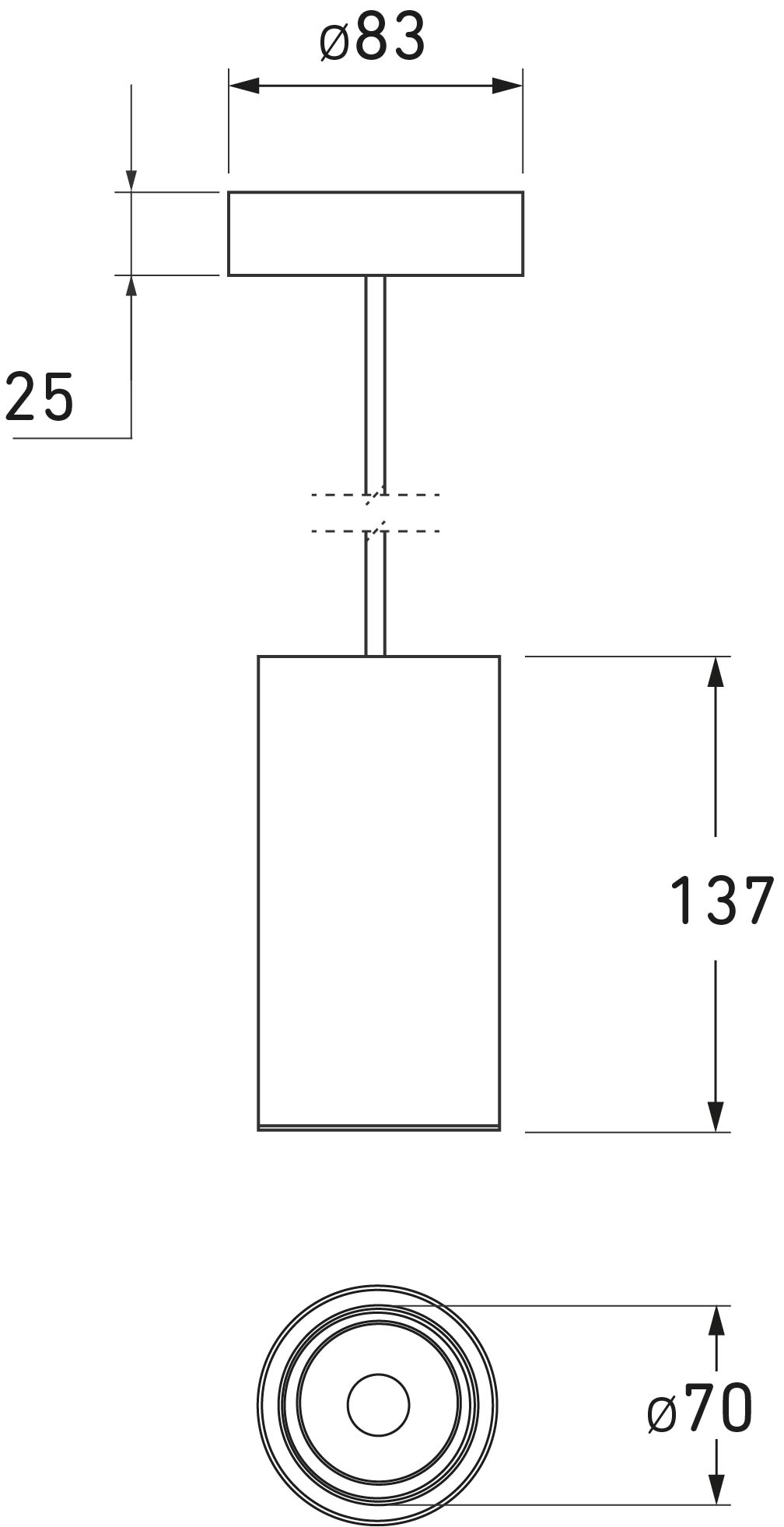

A super compact cylindrical light source with a huge range of optical options. The construction is an extruded aluminium housing packaged with either optic, reflector or LED engine - but always in the classic and clean cylindrical form. Control gear is generally always integral, but this may be restricted with certain outputs, control types and additions. But we can always work this out for you.

Specification

Power

14W

Color Temperature

3000K

Light Source Type

LED

Lumen Output

1435LM

Finishing

BLACK

IP Rating

IP20

Color Rendering

CRI 90

Driver

ON/OFF DRIVER

LINEALIGHT

WALLWASHER

OUTDOOR LIGHTING

Single emission lines for outdoor application. The warm white LED light source with a medium flood light distribution is composed of 12 powerled LEDs. The device body is made of aluminium 6060 and features a anodised aluminum finish, processed by means of 20 µm anodizing; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP68; the total weight is of 1.020 kg. The power supply cable is included and features a 0.250 m length. The device features protection class II and can be floor-mounted with an outer casing, code 99762 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.

SIMES

INGROUND UPLIGHT

OUTDOOR LIGHTING

Body made of AISI 316L monoblock stainless steel. Absence of screws (the luminaire is fixed to the recessing box with OR rings). Recessing box in polypropylene. Mechanical resistance of diffusor IK 08 Maximum load capacity 500 Kg. This luminaire contains built-in LED modules. In case of damage or malfunction please contact the manufacturer to receive additional instructions on how to replace and relative spare parts to order. The LED modules cannot be handled in the luminaire by the end user. This product contains a light source of energy efficiency class: F. LED modules are engineered accordingly to the existing regulations of Lumen Maintenance (LM80) and Technical Memorandum (TM21), where uniformity and quality of the light is 70,000 hours referred to L80 B10 Ta 25 ° C (50,000 hours referable to L80 B10 Ta 40°C). Lifespan of the luminaire min. 50,000 hours at 40°C. Performance Ambient temperature Tq 25°C. Operating ambient temperature range is from -20°C to +50°C. Storage temperature range from -20°C to +60°C.

FORMALIGHTING

RECESSED DOWNLIGHT

INDOOR LIGHTING

Round recessed motorized luminaire with retractable light head. Mounting trim and light head are made of cast aluminium, recessed light housing made of painted metal. Moto-Palla In&Out is available in 3 different light head diameters: 66mm, 100mm and 130mm. The luminaire includes brackets for trim installation on ceiling thickness max. 25 mm or trimless installation on ceiling thickness max. 30 mm. Two remote controlled DC motors drive the movements of the fixtures. The fixtures are rotatable horizontally 350° and, tiltable vertically in two directions (0°-10° In, 0°-90° Out). The movements of the fixture, as well as the intensity and the colour tuning of the light, are controlled via CASAMBI™ application.
