LIGHTFORMS

SURFACE MOUNTED LIGHT

INDOOR LIGHTING

LF156972

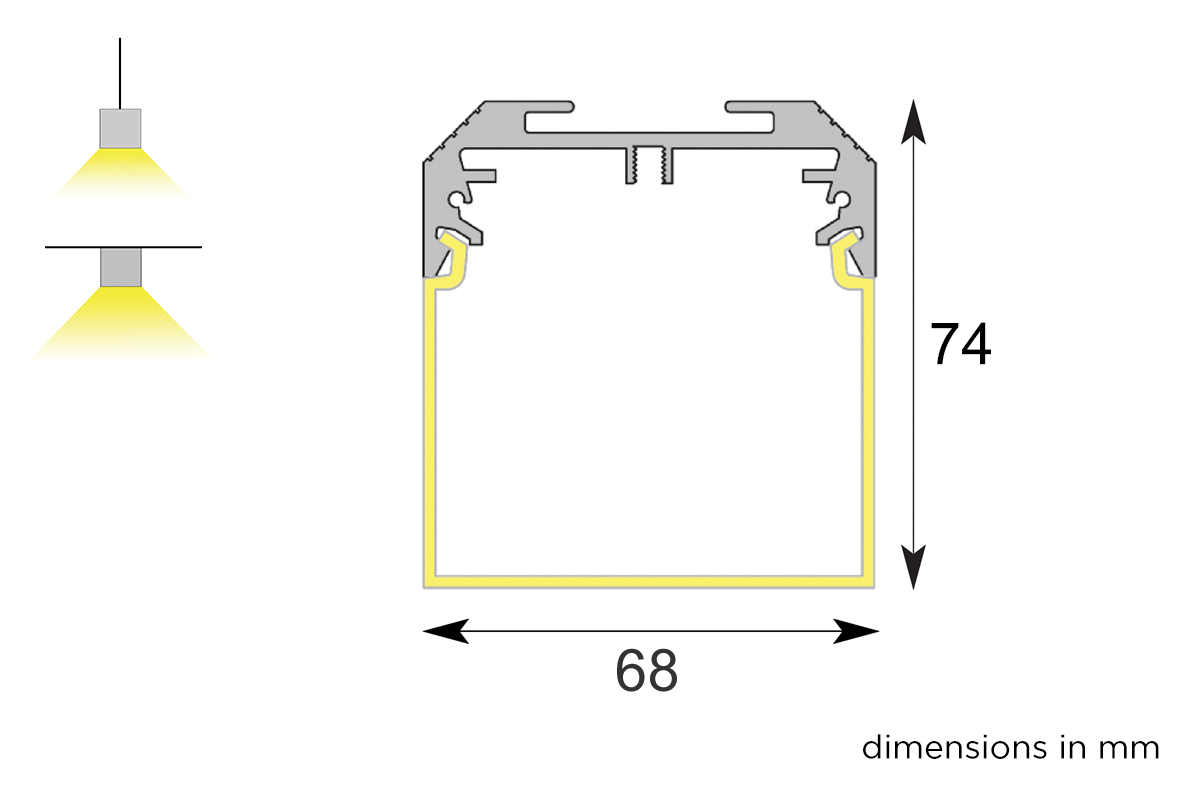

Triplane features three-side illumination from a 68mm lensed channel. Extremely efficient, the white opal, acrylic lens is impact-resistant. Individual or continuous row mounting. Remote driver. Available in suspended and surface models.

Specification

Power

37.2W

Color Temperature

3000K

Light Source Type

LED

Lumen Output

3414LM

Finishing

BLACK

IP Rating

IP20

Color Rendering

CRI 90

Driver

ON/OFF DRIVER

UNILAMP

SPOTLIGHT

OUTDOOR LIGHTING

LUCE & LIGHT

UNDERWATER LIGHT

OUTDOOR LIGHTING

XAL

LINEAR DOWNLIGHT

INDOOR LIGHTING

Rectangular recessed multi-downlight made of die-cast aluminium; installation without tools in mounting set due to patented ball catch system; rectangular installation housing; with trim traffic white; suitable for ceiling thickness of 2-25 mm; equipped with three flood square light elements; symmetrical light distribution with precise radiation characteristic, beam angle 56°; high quality reflector with micro-faceted, aluminum-vaporised surface; chrome reflector; UGR ≤ 19; VDU compatible workplace luminaire according to DIN EN 12464-1; luminance above 65° ≤ 3000 cd/m²; passive cooling of the LEDs through improved heat sink geometry; light colour 3000 K; binning initial MacAdam ≤ 3 SDCM; CRI ≥ 90; min. 90% of luminous flux after 50000 operating hours; energy-efficient high power LEDs with very good colour rendering; degree of protection IP20; PC2; incl. converter, non dimmable; through wiring connection box, 3-pole or 5-pole, available as an accessory; accessories are listed separately; light source not replaceable; control gear replaceable by an authorized professional; clank-free;

TRAXON

LINEAR LIGHT

OUTDOOR LIGHTING

Media Tube® Plus is a slim, direct view luminaire designed to integrate into any wall, facade or media lighting application with tight installation requirements. Available with a Direct View or Diffused View lens and 9 pixels per 300mm / 1’, Media Tube® Plus provides smooth effects to add life and motion to the installation. Featuring Auto-Addressing and simple quick lock connections, Media Tube® Plus is perfect for building façades, media applications, and more.
