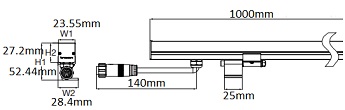

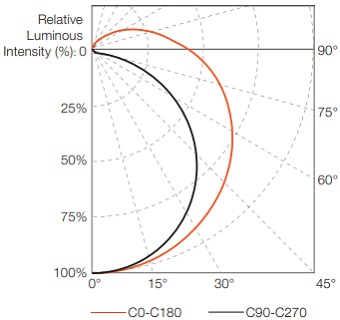

ARCHISHAPE MEDIA TUBE_RGBW_1000MM

ARCHISHAPE® Media Tube runs on 24V power supply, and fits into any wall, façade or media lighting application with tight installation requirements, while the wide beam angle output and 10-pixels-per-meter ensures a smooth illumination experience. This product greatly simplifies the lighting installation for building façades, media applications, bridges and more. IP66.

Specification

Power
14W/M
Color Temperature
RGBW
Light Source Type
LED
Lumen Output
420LM/M
Finishing
ALUMINIUM
IP Rating
IP66
Color Rendering
CRI80
Driver
DMX 512

See more

LIGHTFORMS
SUSPENDED PENDANT LIGHT
INDOOR LIGHTING
The ValuePlane luminous panel luminaire is a budget-friendly fixture available with direct distribution that may be suspended or surface mounted. The luminaire is offered as an individual, single-panel fixture OR in a multi-panel configuration for extended runs of any length with the addition of blank joiner sections. Consult specification sheet to specify a multi-panel extended run.
LED LINEAR
INGROUND LINEAR LIGHT
OUTDOOR LIGHTING

Robust in ground grazer made of V4A stainless steel available in standard lengths and 10° and 30° beam optic. Oceanos has an environmental resistance of IP67. This is made to the unique polyurethane encapsulation. Different optics enable adaptability to different projects. The 10° optic suit well for wall grazing, as the 30° and opal are suitable for accent lighting. Oceanos has an IK10 classification hence is very robust. The ability to withstand a pressure of 30kN is equivalent to being traversed by a vehicle according to DINEN605982.

LUCE & LIGHT
SPOTLIGHT
OUTDOOR LIGHTING

Pivot 1.7 code: CP17020FKA-1/projector for outdoor applications/surface mounted (ceiling, wall, ground, spike, strap)

Power consumption: 7W/Power supply: 24Vdc/Lumen output at source: 657 lm (3000K, 7W, CRI 80)/Delivered lumen output: 463 lm (3000K, 34°, 7W, CRI 80)/1 high-intensity power LED, 3-step MacAdam, 50 000h L90 B10 (Ta 25°C)/LED colour: 2700K/Optics: 54°: optical system consisting of a deep-set, high-efficiency TIR lens/CRI Colour Rendering Index: 80/Operating temperature: -20°C — +45°C/Glow wire test: 960°/Photobiological safety: photobiological safety: risk group 1 according to EN 62471:2006/Appliance class: class III/Weight: 400 g/Dimensions: Ø40x75 mm/Energy efficiency class: F (light source) in accordance with EU 2019/2015


LUCI
LED STRIP
INDOOR LIGHTING
New application lighting that fits into a corner Expands the range of design with two-sided luminescence 33mm to 1508mm, 60 length selections available and with shorter lead time
