AP701_RGBW(5000K)

RGBW LED Strip 120 degree beam, 60 leds/m. 100mm cut length 24V voltage. RGBW color temperature. Suitable for Indoor and Outdoor application. IP20 / 65/ 67. DIMENSION : L1000mm x W10mm

Specification

Power
14.4W/M
Color Temperature
RGBW(5000K)
Light Source Type
LED
Lumen Output
604LM/M
Finishing
WHITE
IP Rating
IP20
Color Rendering
CRI90
Driver
0-10V DRIVER

See more

LINEALIGHT
WALL LIGHT
OUTDOOR LIGHTING

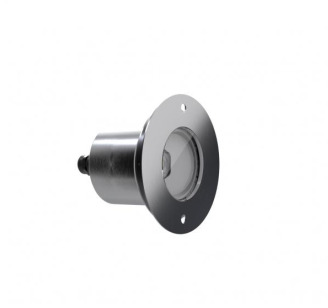

Single emission submerged for outdoor application. The natural white LED light source with a medium wide flood light distribution is composed of 1 powerled LEDs with CCT of 4000 K and a CRI 80; the source luminous flux is 620 lm, with a 137.8 lm/W nominal luminous efficacy. The device body is made of stainless steel and features a steel finish; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP68; The power supply driver is not provided and is to be ordered separately. The total absorbed power is 4.5 W. The power supply cable is included and features a 2 m length. The device features protection class III and can be wall lights or floormounted with an outer casing, code 83140 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.
CDN LIGHTING
RECESSED DOWNLIGHT
INDOOR LIGHTING

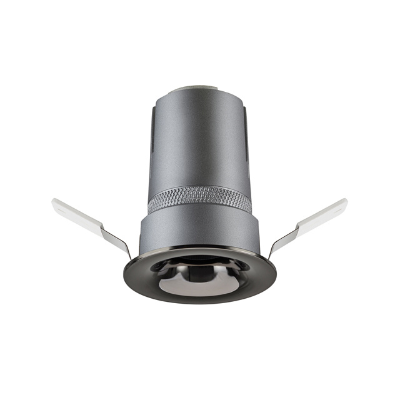

SPARK
ADJUSTABLE DOWNLIGHT
INDOOR LIGHTING

Recessed adjustable downlight luminaire body made of aluminium housing with white powder coated finish. Black finish and honeycomb accessory available upon request.

MEYER
FLOODLIGHT
OUTDOOR LIGHTING

Housing made of corrosion‑resistant die‑cast aluminum AlSi12, polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, tempered safety glass, anti‑reflective coating from 1 side, silicon gasket, closure with 2 stainless steel screws, mounting bracket: 1 elongated hole Ø 7 mm, spacing 18 mm, 1 centre hole Ø 8.5 mm, tilt range: 180°, cable gland: M16, connecting terminal: 3 pole, precise PMMA optics, integral driver (AC/DC), CRI > 70, max 2 SDCM, service life L90/B10 > 50.000 h, luminous flux: 679 lm, wattage: 9 W, delivered lumens 75 lm/W, protection type IP67, protection class I, impact resistance IK08, windage area 0,012 m², dimensions: Ø 123 mm, width 87 mm, weight 1.8 kg. The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE and ENEC marks. Customized solutions and modifications are possible: Special ral, db or ncs colours as polyester powder coat, luminaires in 2700 K and other colour temperatures and versions for high ambient temperature.
