SPARK

SURFACE MAGNETIC TRACK SPOT

INDOOR LIGHTING

SPK-TL12

Magnetic track system come with RECESSED mount or SURFACE mount version. Module available LED Diffused linear, LED Spot linear, LED Spot light etc. Input Voltage 48VDC

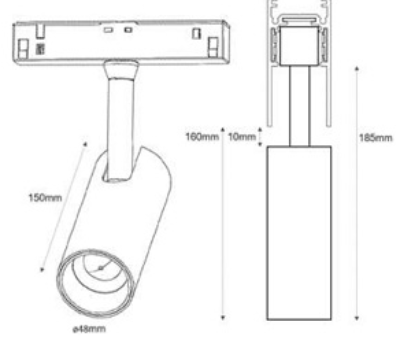

DIMENSION : Ø48*150*185mm

Specification

Power

12W

Color Temperature

3000K

Light Source Type

LED

Lumen Output

960LM

Finishing

BLACK

IP Rating

IP20

Color Rendering

CRI 90

Driver

ON/OFF DRIVER

SPARK

ADJUSTABLE DOWNLIGHT

INDOOR LIGHTING

Small recessed adjustable downlight with snoot. Luminaire body made of aluminium material and white powder coated on surface finishes.

LINEALIGHT

WALLWASHER

OUTDOOR LIGHTING

Single emission lines for outdoor application. The warm white LED light source with a elliptical light distribution is composed of 36 powerled LEDs. The device body is made of aluminium 6060 and features a anodised black finish, processed by means of 15 µm anodizing; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP67; the total weight is of 4.8 kg. The power supply cable is included and features a 0.2 m length. The device features protection class I and can be floor-mounted with an outer casing, code 98726 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.

LIGHTFORMS

SUSPENDED PENDANT LIGHT

INDOOR LIGHTING

This track spot is available in a range of body and baffle colours and, with its classic form, the style can fits into most applications. The inbuilt driver maintains its minimal design while the bespoke heatsink housing ensure long lifetime. The premium LED chip and polycarbonate optics provide a range of beam angles and CCT and CRI outputs.

LED LINEAR

INGROUND LINEAR LIGHT

OUTDOOR LIGHTING

24 V, IP67 protected and IK10 certified, linear LED luminaire for indoor and outdoor in-ground installation. Suitable for installation into roads and parking lots according to EN 60598-2-13. To be walked on and traversed by vehicles with air filled tires (including trucks used for delivery). Polyurethane encapsulation offering a premium water proof sealing (values), UV resistance (no coloration or increase of absorption) chemical stability against urban gazes and protection against abrasion. Stainless Steel V4A housing delivered with male/female IP67 connectors. Available either with an opal top layer or transluscent with an internal 10° and 30° lenses for wall grazing. Light source assembled using state of the art automated Reel-to-Reel (R2R) production process supporting LED Linear™ Tj Away thin flexible circuit board technology.
