FORMALIGHTING

RECESSED DOWNLIGHT
OUTDOOR LIGHTING
3467BN11-8030000029

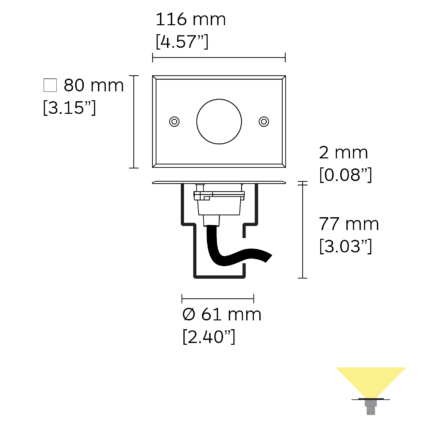

Recessed step/driveway uplight. InoxLED trim in stainless steel and light body in cast aluminium. Inclusive of toughened safety convex clear polycarbonate and weatherproof durable silicone gasket and external counter sink captive screws made of stainless steel. Thermoplastic box for in-ground recessed installation included. Recessed box for installation in concrete to be ordered separately.

Specification

Power
1.1W
Color Temperature
3000K
Light Source Type
LED
Lumen Output
117LM
Finishing
GREY
IP Rating
IP67
Color Rendering
CRI 80
Driver
ON/OFF DRIVER

See more

LINEALIGHT
INGROUND UPLIGHT
OUTDOOR LIGHTING
Single emission uplights for outdoor application. The warm white LED light source with a wide flood light distribution is composed of 1 arrayled LEDs. The luminare body is made of aisi 316l steel and features a steel finish; the diffuser is made of extra clear glass with a silk-screening treatment. The ingress protection degree is IP68.
IGUZZINI
LINEAR LIGHT
INDOOR LIGHTING

LED module set up for housing in initial or intermediate system profiles - down emission. DALI dimmable electronic control gear integrated in the luminaire. Extruded aluminium heat sink; high emission yield flux enhancer. Warm LED.

LINEALIGHT
UP/DOWN WALL LIGHT
OUTDOOR LIGHTING
Double emission wall lights for outdoor application. The natural white LED light source with a double diffused light distribution is composed of 2 arrayled LEDs. The luminaire body is made of die-cast aluminium en ab - 46100 and features a white finish, processed by means of open pore anodizing + powder coating; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP65, IK08.
NEKO
RECESSED LINEAR LIGHT
INDOOR LIGHTING

DASH 50 Recessed: D5R01140-930HPF-WO

Recessed LED luminaire with direct beam made of high-quality extruded aluminium profile; white powder-coating finish – textured matt (RAL 9016); ON-OFF Driver is integrated into the luminaire housing; System Power (Total power consumption) 29W – High Power; Dimensions of the profile channel (LxWxH): 1140mm x 63mm x 125mm; ceiling cutout of 1135mm x 57mm with a narrow mounting trim; luminaire's weight is approximately 2500g; CCT 3000K with a System Luminous Flux of 2440lm; high color rendering at an index of CRI>90; Binning initial <= MacAdam 3; after a lifetime of 50000h L80B10 min. 80% of the luminous flux with energy efficient LUMINUS LED Chips of the latest generation; 5 years warranty; diffusor made of Polymethylmethacrylate (PMMA) opal; degree of housing protection IP20; RG<1 (EN62471); protection class I
