FORMALIGHTING

SUSPENDED LINEAR LIGHT
INDOOR LIGHTING
7308BT21-9730ODDA10

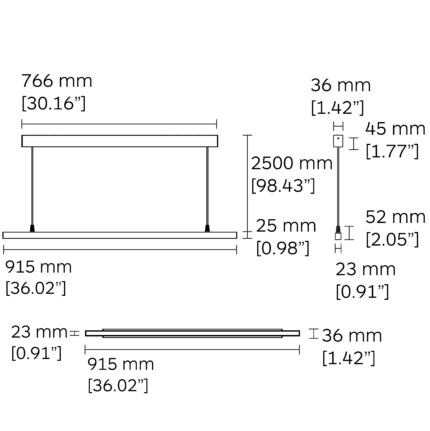

Pendant mounted luminaire with light body in extruded aluminium. Available in two different sizes. Boths are available in a version inclusive of integrated diamond faceted no-dazzle screen in thermoplastic. Polaris 20 comes also equipped with a satin opal diffuser. Supplied with ceiling canopy and pre-installed 1.5m electrical cable and with 2 x 1.5m pendant steel wires.

Specification

Power
24.2W
Color Temperature
3000K
Light Source Type
LED
Lumen Output
1358LM
Finishing
BLACK
IP Rating
IP20
Color Rendering
CRI 97
Driver
ON/OFF DRIVER

See more
