Housing made of corrosion‑resistant die‑cast aluminum AlSi12, double polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, tempered safety glass flush with frame, anti‑reflective coating from 1 side, frosted glass with diffuse light distribution as orientation luminaire , for loads up to max. 2000 kg (according to IEC / EN 60598‑2‑13), silicon gasket, cover frame and closure with 2 stainless steel screws, with polypropylene recess housing, cable gland: M20 (stainless steel), connecting terminal: 3 pole, with 1 m cable H07RN‑F3G1, integral potted driver (AC/DC), CRI > 85, max 2 SDCM, service life L90/B10 > 50.000 h, Beam angle (fwhm): 108° / 112°, luminous flux: 566 lm, wattage: 19 W, delivered lumens 30 lm/W, protection type IP67, protection class I, impact resistance IK10, dimensions (L×H×W): 647 × 40 × 84 mm, weight 3.6 kg. The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE mark. Customized solutions and modifications are possible: Special ral, db or ncs colours as polyester powder coat, luminaires in 2700 K and other colour temperatures and versions for high ambient temperature.

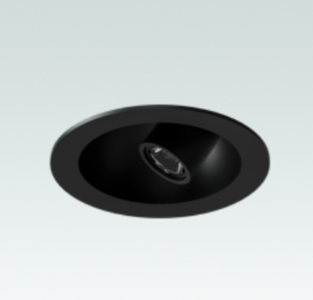

Recessed luminaire with round mounting trim in cast aluminium with springs for trim installation on a ceiling thickness of 1-25mm. Zero In & Out is available in Dia 40 or 66mm. The fully retractable light head is tillable up to 90° and rotatable horizontally 355°. Its unique pull-down mechanism, enables it to function as either a downlight or an exposed lamp able to emulate a surface or track fixture. Bean angle avaiable 11°. 16° and 32°.

The in-ground uplighter range is designed to fulfill the demands of sophisticated lighting projects. The luminaires combine all crucial product advantages precise light distributions, perfect glare control, adjustable reflectors and shallow recess depth. Uplight 220 and 260 are equipped with the innovative Heat Slide mechanism which allows the optical system to be adjusted and aimed whilst the LED module remains connected to the luminaire housing. Thus efficient heat dissipation and a long lifetime of the LED is achieved. The luminaires are now available with innovative wall washeroptics for uniform illuminaition from thebottom to the top of the facade.

Round recessed spotlight in die-cast aluminium; 1 lamp; surface gold; 360° rotatable and 30° tiltable; installation without tools in mounting set due to patented ball catch system; round installation housing; with trim Signal white; for installation in soft acoustic ceilings; suitable for ceiling thickness of 25-40 mm; passive cooling of the LEDs through improved heat sink geometry; with COB.
