LINEALIGHT

FLOODLIGHT

OUTDOOR LIGHTING

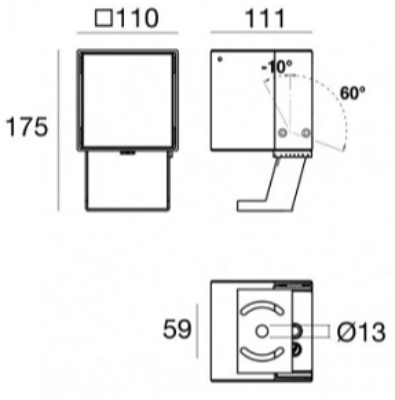

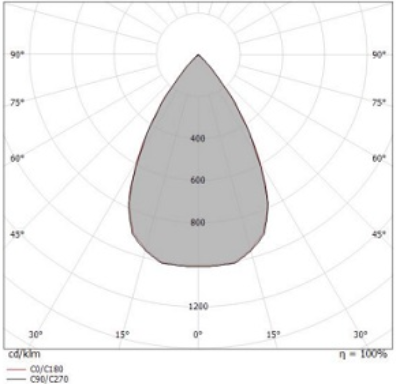

PERISKOP_ 95378W60

Single emission projectors for outdoor application. The warm white LED light source with a wide flood light distribution is composed of 1 arrayled LEDs. Luminaire body is made of die-cast aluminium EN AB - 46100 and features a dark brown finish, processed by means of open pore anodizing + powder coating; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP66; IK10

Specification

Power

20W

Color Temperature

3000K

Light Source Type

LED

Lumen Output

1816LM

Finishing

DARK BROWN

IP Rating

IP66

Color Rendering

CRI 80

Driver

ON/OFF DRIVER

LIGHTFORMS

RECESSED LINEAR LIGHT

INDOOR LIGHTING

Lightplane 1 Recessed Trim is a discreet, recessed fixture with a 25mm linear lens. Choose either a flat or tapered, chamfer aluminium trim. This small channel allows for minimal linear lighting in a recessed application. Driver is REMOTE.

LINEALIGHT

RECESSED DOWNLIGHT

INDOOR LIGHTING

Single emission downlights for indoor application. The warm white LED light source with a flood light distribution is composed of 4 powerled LEDs. The device body is made of aluminium and features a embossed white ral 9003 finish, processed by means of coating. The ingress protection degree is IP40; the total weight is of 0.24 kg. The power supply driver is not provided and is to be ordered separately. The device features protection class III and can be ceiling-mounted, with a 65 mm diameter hole (in plasterboard) with an outer casing, code 89374 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.

LINEALIGHT

UNDERWATER LIGHT

OUTDOOR LIGHTING

Single emission submerged for outdoor application. The warm white LED light source with a flood light distribution is composed of 6 powerled LEDs. The luminaire body is made of aisi 316l steel and features a steel finish; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP68, IK10.
