The square cross-section silux K emits light from the diffused cover, 12 mm on the top and 3mm on both sides, so the light shines to the corners of the fixtures. 12×16mm homogeneous square section rigid light 3 different power consumption options to support energy saving project requirement With various length types and accessories ideal for various applications such as recessed mount, shelf and cove light.

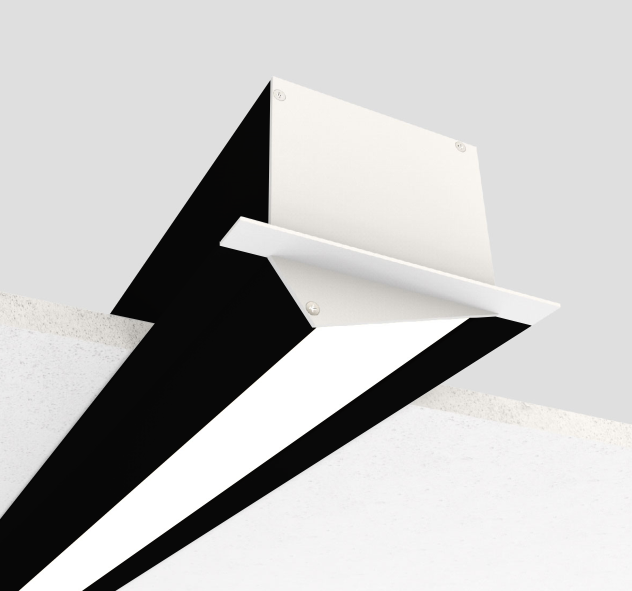

Bezel BZ2 recessed wall-mounted luminaire that provides a powerful and versatile solution for low mounting heights. The unique floor graze optic reduces the required height of architectural elements to house and install the luminaire. The luminaire’s performance wall optic offers best-in-class uniformity and high output to satisfy difficult municipal codes for egress and way-finding. Short and long shroud faceplate designs to maximize performance in any application.

Round recessed spotlight in die-cast aluminium; 1 lamp; surface traffic white; 360° rotatable and 30° tiltable; installation without tools in mounting set due to patented ball catch system; round installation housing; with trim traffic white; suitable for ceiling thickness of 2-25 mm; passive cooling of the LEDs through improved heat sink geometry; with COB (Chip on Board) technology for maximum efficiency; no appearance of multiple shadows.

Luminaire made of copper and stainless steel, Opal glass with screw neck. Wall mounting with a mounting plate made of stainless steel, Steel grade number 1.4301. Mounting plate with 3 fixing holes ø 8.5 mm. Angle 120° · Pitch circle ø 100 mm, 2 cable entries for through-wiring of mains supply cable ø 7-10,5 mm, max. 3 G 1.5@ Plug connection. Connecting terminal 2.5@ Earth conductor connection LED power supply unit 220-240 V x 0/50-60 Hz, DC 176-264 V, DC Start ≥ 198 V, Safety class I, Protection class IP 44, Protected against granular foreign bodies, > 1 mm and splash water, Impact strength IK03. Protection against mechanical impacts < 0.35 joule, r – Safety mark, c – Conformity mark.
