Product Detail
Home Products Detail

Products

BEGA

INGROUND FOOT LIGHT
OUTDOOR LIGHTING
84268K3

In-ground luminaire with single-sided light for recessed mounting in compacted surfaces, paths and places. An orientation and indication luminaire also for marking danger points. Drive-over luminaire for vehicles with pneumatic tyres. Luminaire must not be used for installation in road lanes, where the fixture is exposed to a horizontal strain due to braking, acceleration and change of direction. Luminaires and installation housings made of highly corrosion-resistant aluminium. Ring made of glass fibre reinforced synthetic material Borosilicate glass and reflector surface made of pure aluminium. Optical silicone lens. IP67, IK10

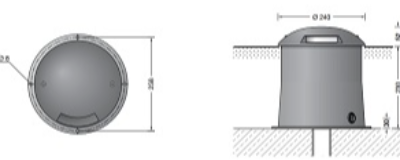

DIMENSION : Ø240*H230MM

Specification

Power
10.5W
Color Temperature
3000K
Light Source Type
LED
Lumen Output
135LM
Finishing
BLACK
IP Rating
IP67
Color Rendering
CRI 80
Driver
ON/OFF DRIVER

See more

LIGHTFORMS
SURFACE MOUNTED LIGHT
INDOOR LIGHTING
Lightplane 1S features a narrow, 25mm linear channel and provides direct illumination from a minimalist form. The fixture is available in suspended, wall and surface models. Driver is REMOTE.
LINEALIGHT
CEILING LIGHT
OUTDOOR LIGHTING
Single emission ceiling lights for outdoor application. The warm white LED light source with a medium flood light distribution is composed of 1 arrayled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a embossed black ral 9005 finish, processed by means of open pore anodizing + powder coating; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP65; the total weight is of 1.35 kg. The power supply driver is not provided and is to be ordered separately. The device features protection class III and can be ceiling-mounted. Compliant with the EN 60598-1 standard and its specific provisions.
SPARK
CEILING LIGHT
INDOOR LIGHTING

DIAMETER 600 MM 100 LM/W

RCL
ADJUSTABLE DOWNLIGHT
INDOOR LIGHTING

DRX5 3000K LED (17W for light source) standard trim recessed luminaire with 34° optic. Manufactured from LM24 aluminium and glass-filled polycarbonate, with a mild-steel mounting ring. Finished in white (RAL 9010). Voltage is 100-277V 50/60HZ. Luminaire has high-performance colour rendering of 90+ CRI. Luminaire can be rotated, with +/- 185° movement through the pan axis and +35 through the tilt axis, at a resolution of less than 1° in either axis. Movement and dimming is controlled using RCL Control. Recording and recalling of scenes as standard.
