ARTEMIDE

INGROUND FOOT LIGHT
OUTDOOR LIGHTING
T416100W00

Light fixture with high-performance LED light sources. Drive-over recessed floor installation with floorprotruding cap. All the versions are drive-over up to 5000Kg. Due to the low height of the cap, Megara 90 is also suitable for installation in walk-over areas, being careful to avoid areas of direct transit. Composed by body, cap, diffuser, recessing box. Body and cap in painted EN AB44100 aluminium, silicone gaskets; provided with 30 cm-long pre-resined three-pole connection cable. Electronic ballast integrated in the body. Diffuser in UV resistant polycarbonate.Power connection to the mains by means of the IP67 connector supplied with the light fixture, which can be housed in the recessing box and is suitable for cables with a diameter from 5 to13.3 mm. Fixing to the recessing box is ensured by means of anti-vandal screws TORX. Recessing box for laying in reinforced polymer to be ordered separately. Radial emission beam optic. White monochromatic LEDs available in 3 colour temperatures in AISI 316 stainless steel. Painted die-cast aluminium with 3-stage outdoor treatment. Technical features of light fixtures in compliance with EN60598-1 and part 2-13. IP Rating IP65-IP67.ENEC approved.Insulation class I.

Specification

Power
8.7W
Color Temperature
3000K
Light Source Type
LED
Lumen Output
8LM
Finishing
ANTHRACITE GREY
IP Rating
IP65
Color Rendering
CRI 80
Driver
ON/OFF DRIVER

See more

MEYER
POLE LIGHT
OUTDOOR LIGHTING

Housing made of corrosion‑resistant die‑cast aluminum AlSi12, polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, tempered safety glass, anti‑reflective coating from 1 side, dark screenprint, silicon gasket, closure with 4 stainless steel screws, for installation on poles Ø 60 ‑ 100 mm, tiltable base made of powder coated aluminum, 2 drilled holes Ø 9 mm, spacing 95 mm, 1 centre hole Ø 13.5 mm, tilt range: 90°, 360° adjustable, cable gland: M20, connecting terminal: 3 pole, precise PMMA optics, integral driver (AC/DC), CRI > 80, max 2 SDCM, service life L90/B10 > 50.000 h, Beam angle (fwhm): 6°, luminous flux: 1811 lm, wattage: 23 W, delivered lumens 78 lm/W, protection type IP65, protection class I, impact resistance IK08, windage area 0,016 m², dimensions (L×H×W): 126 × 97 × 126 mm, weight 1.8 kg. The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE mark. Customized solutions and modifications are possible: Special ral, db or ncs colours as polyester powder coat, luminaires in 2700 K and other colour temperatures and versions for high ambient temperature.

BEGA
WALL LIGHT
OUTDOOR LIGHTING

Luminaire cover made of cast bronze. Luminaire housing made of stainless steel. Safety glass with optical structure Silicone gasket. Recessed opening ø 180 mm Required installation depth 125 mm Fixing is achieved by using two adjustable wedge-shaped claws. Protection class IP 65 Dust-tight and protection against water jets Impact strength IK07.

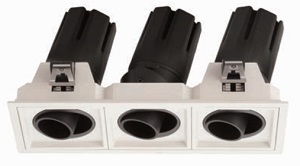

SPARK
ADJUSTABLE DOWNLIGHT
INDOOR LIGHTING

Recessed adjustable square downlight with snoot and luminaire body made of aluminium housing with white powder coated trim finish. Black finish and honeycomb accessory available upon request.

LINEALIGHT
UNDERWATER LIGHT
OUTDOOR LIGHTING

Submerged underwater light for outdoor application. The natural white LED light source with a diffused light distribution is composed of 1 power led. Luminaire body is made of stainless steel and features a steel finish, processed by means of shot peening. IP68, IK10
